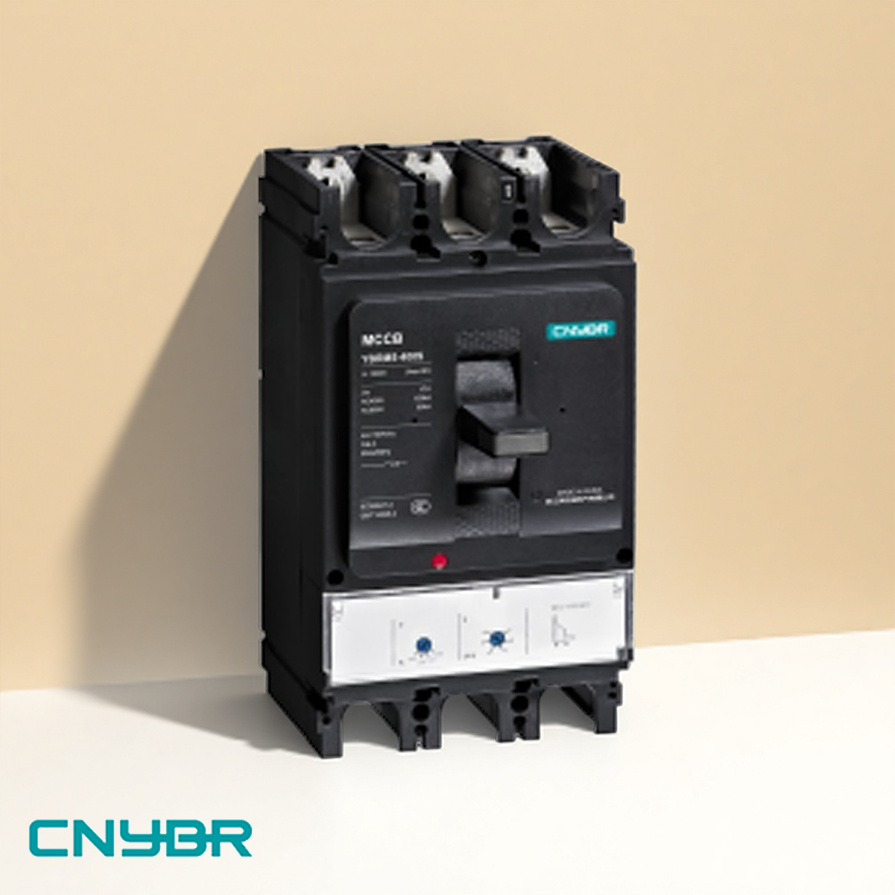

YBRM5 - 400 Series Thermomagnetic Breaker

1

YBRM5 - 400 Series Thermomagnetic Breaker

YBRM5 - 400 series thermomagnetic molded case circuit breaker, with advanced technology research and development, to achieve efficient short circuit breaking. Rotating double break point, contact repulsion and other technologies are used to ensure the fast and reliable short-circuit current break. Rated insulation voltage AC1000V, rated operating voltage 690V and below, rated current of 250, 315, 350, 400A. Breaking capacity ICU 55kA under N-type 400V, ICS 35kA under 690V; H-type 400V ICU 100kA, 690V ICS 50kA; ICU 150kA at 400V and ICS 65kA at 690V for S-type. Mechanical life 20000 times, 400V electrical life 10000 times.It has the characteristics of double insulation of the operating mechanism and detachable wiring nuts, the cassette accessories are easy to install, the handle is with a status lock, and the size is compatible with the complete set of factories. The shell is made of environmentally friendly recyclable materials, which is environmentally friendly to produce. It is suita…
