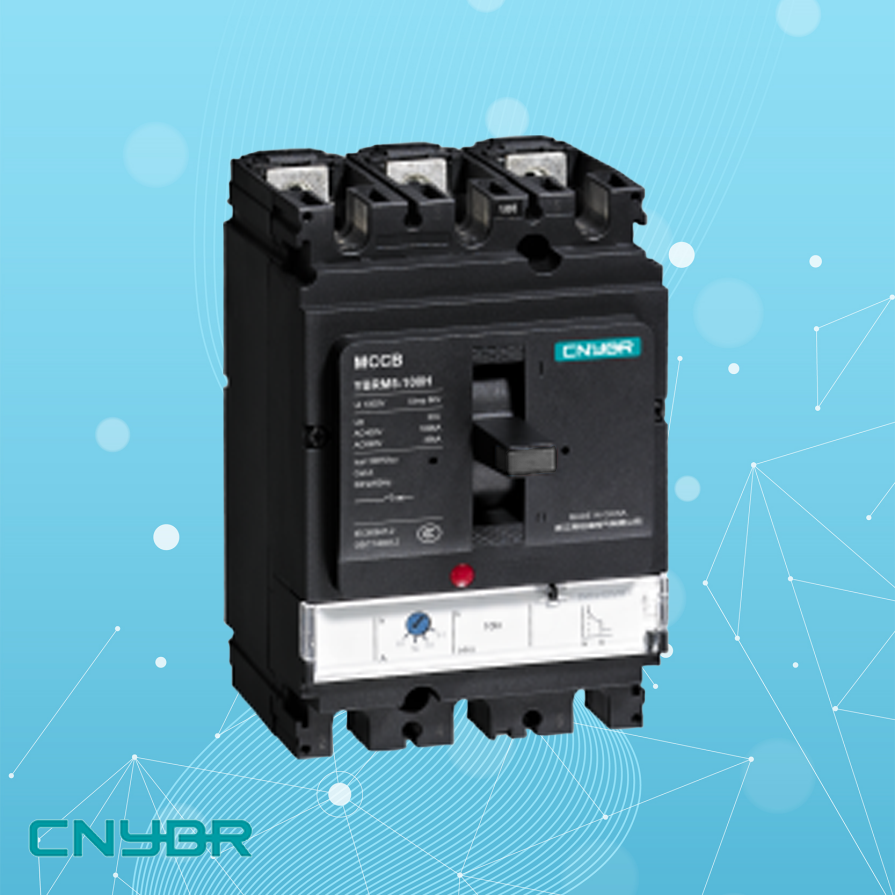

YBRM5-100 High Performance Circuit Breaker
Number of poles 3P/4P, rated working voltage AC400/690V, rated current 16 - 100A. Rated insulation voltage AC1000V, rated shock withstand voltage 8KV. With rotating double break point structure, contact rejection technology, etc., short circuit breaking is efficient and reliable, and the N-type 400V is rated for the ultimate short-circuit breaking capacity of 55kA, H-type 100kA, S-type 150kA, and ICS = 100% ICU. The mechanical life is 30000 times, and the electrical life (400V) is 15000 times. The parameters of the thermomagnetic and magnetic trippers are flexible and compact. The operating mechanism is double insulated, the detachable wiring nut can be assembled with a variety of accessories, the handle lock prevents misoperation, and the material is environmentally friendly and high-quality. Usage: Used in industrial and building power distribution systems, providing strong short-circuit protection and overload protection for equipment with a rated current of ≤100A, ensuring system s…
