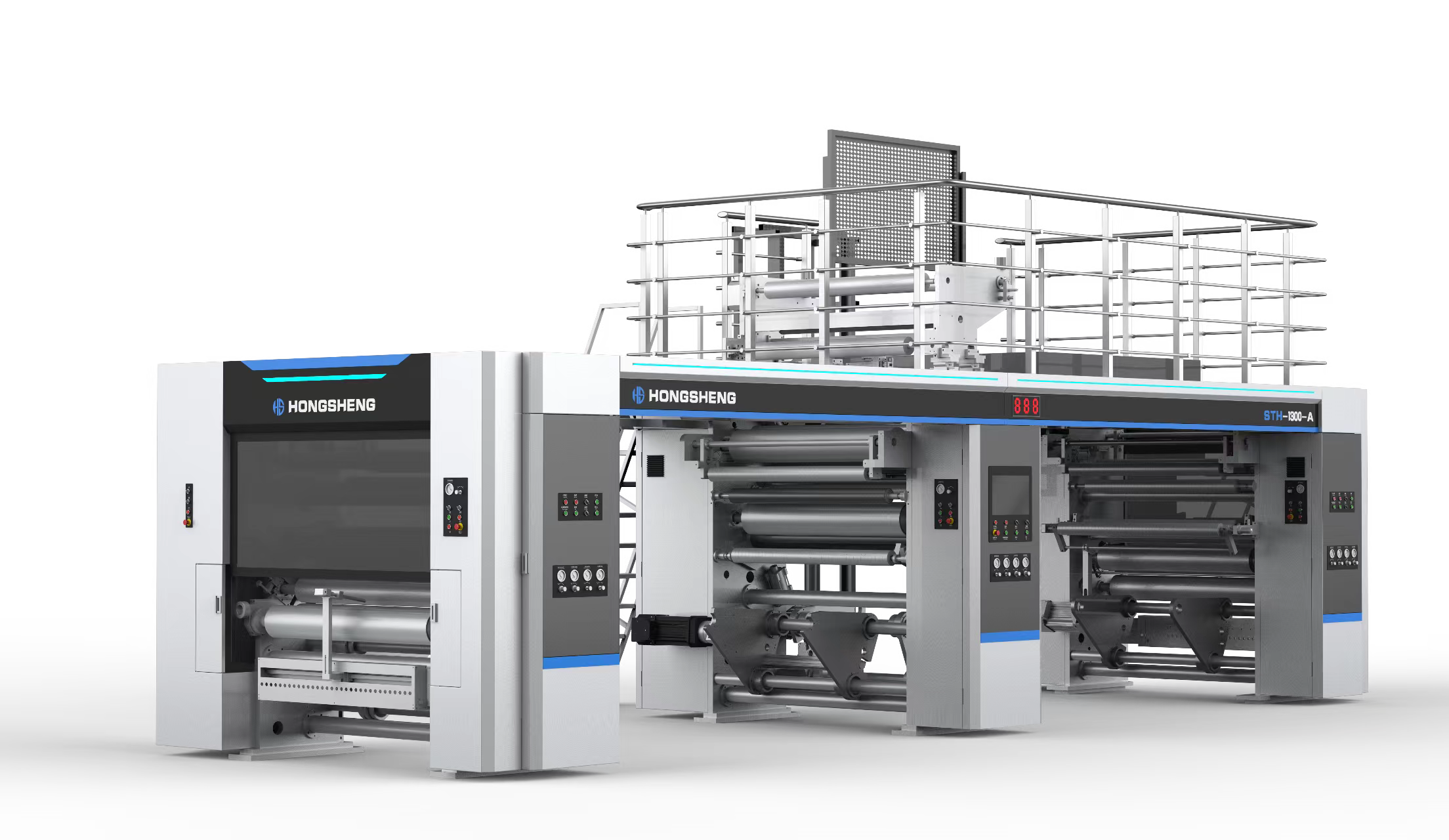

Triplex solventless lamination machine

2

Triplex solventless lamination machine

Main Parameters of solvent free lamination machine:   Maximum speed: 500 m/min Maximum width: 1330 mm/1030mm Winding/unwinding diameter: 800 mm Winding/unwinding core diameter: 152 mm PLC brand: Panasonic (Japan) Motor brand: Shanghai SFC   Core Advantages and Features of Triplex solventless lamination machine  I. Core Process Innovation  · Three-layer lamination in one step: Adopting a unique three-in-one integrated design, it can complete the lamination of three layers of materials in a single production process, greatly improving production efficiency and avoiding the conversion and losses of traditional multiple processes. II. Feeding and Threading System  • Aluminum foil station, shortest path: The design shortens the path of the aluminum foil from unwinding to the laminating unit.  • Minimal waste: This design minimizes material waste during startup threading and production, directly saving production costs.  III. Intelligent Control System • Tension Control: Each key section emp…
