Reliable YBRM5-630 Thermal Breaker

1

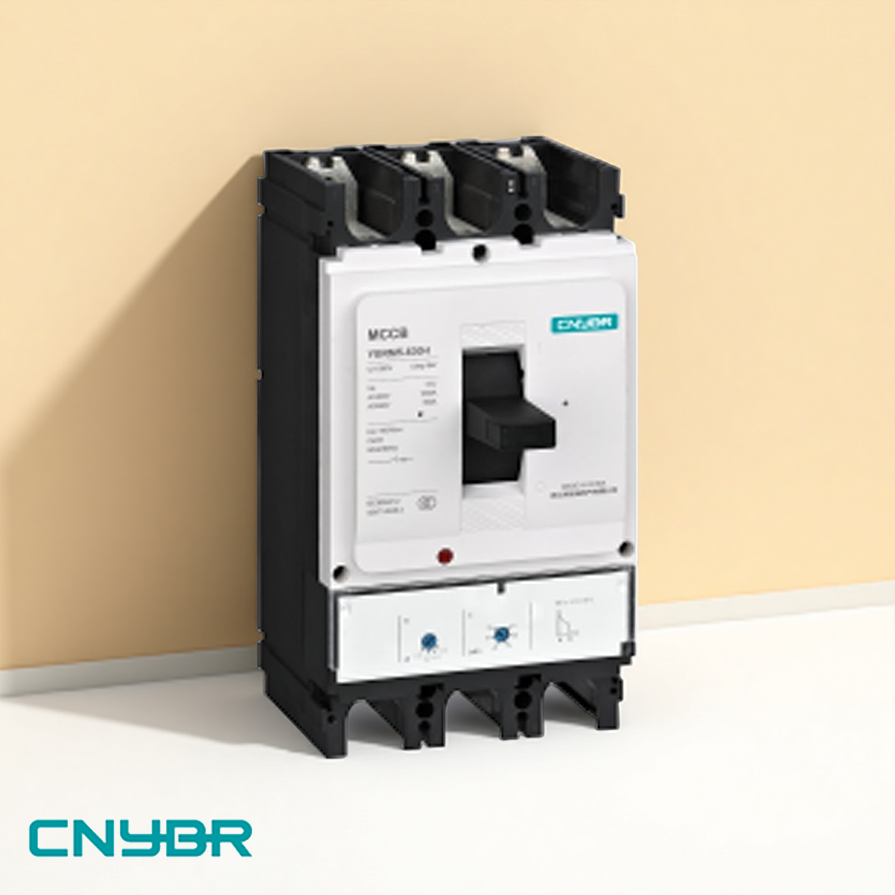

Reliable YBRM5-630 Thermal Breaker

The YBRM5 - 630 series of thermomagnetic molded case circuit breakers are the result of the fusion of advanced technologies. Through rotating double breakpoint, contact repulsion and other technologies, the fast and reliable breaking of short-circuit current is realized.Rated insulation voltage AC1000V, rated working voltage 690V and below, rated current is available in 400, 500, 600, 630A. Breaking capacity ICU 55kA under N-type 400V, ICS 35kA under 690V; H-type 400V ICU 100kA, 690V ICS 50kA; ICU 150kA at 400V and ICS 65kA at 690V for S-type. Mechanical life 20000 times, 400V electrical life 10000 times.It has double insulation of the operating mechanism, detachable wiring nuts, easy installation of cassette accessories, handle with lock to prevent misoperation, and size compatibility. The shell is made of environmentally friendly recyclable materials, and the process is environmentally friendly. It is suitable for industrial and building power distribution systems at altitude of 2000…
