Precision Whiteboard Marker Assembly Device

1
Website:

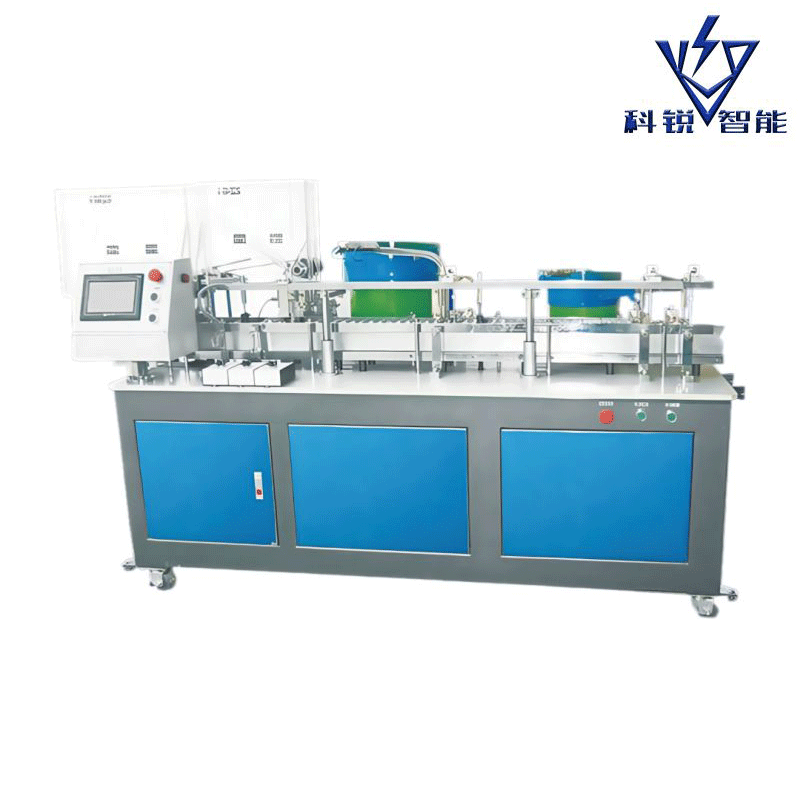

Precision Whiteboard Marker Assembly Device

The marker whiteboard pen assembly machine is an automated device specially designed for the full component integration of marker whiteboard pens. It focuses on the structural features of its erasable pen tip and large-capacity ink tank, achieving precise assembly of pen barrel, pen tip, ink bladder and pen cap. It is suitable for the batch production of marker whiteboard pens for teaching and office use. ​ The equipment adopts a segmented assembly line. According to the characteristics of the pen tip fiber material, it is equipped with a flexible clamping mechanism to ensure that the concentricity error when the pen tip is implanted into the pen barrel is ≤0.05mm, avoiding ink leakage or poor writing. The ink sac assembly station adopts quantitative pressure control (adjustable from 10 to 50N) to ensure a tight connection between the ink sac and the pen tip, with an ink conduction rate of 100%. ​ Compatible with pen barrel diameters of 10-16mm and lengths of 130-200mm, it supports var…
