Power cleaning head drop testing machine IEC60335-2-2 Section 15.101

16

Power cleaning head drop testing machine IEC60335-2-2 Section 15.101

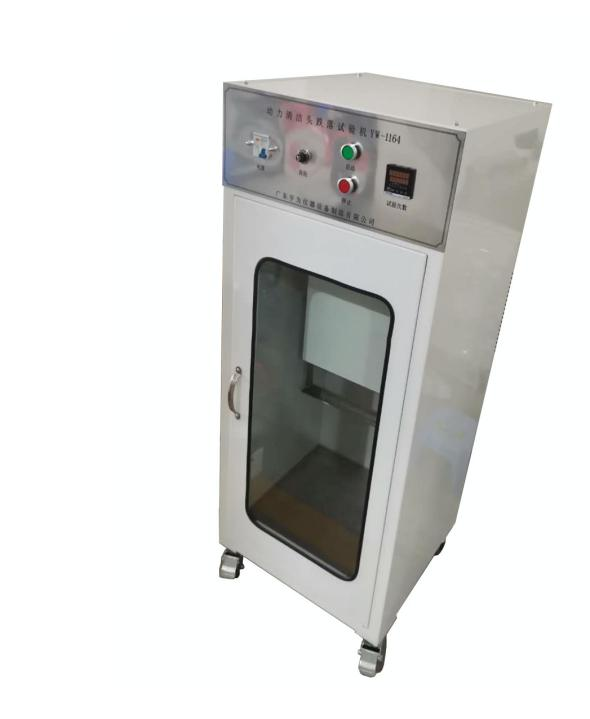

Power cleaning head drop testing machine YW-1164 Complied standards: GB1706.7 Special Requirements for Vacuum Cleaner and Water Absorbing Cleaning Appliance, 15.101 of IEC60335-2-2  Purpose: Used to test the mechanical strength of the power cleaning head for water absorbing cleaning appliances Sample range: Power cleaning head for water absorbing cleaning tools Structure and function: Suspend the power cleaning head of the water absorbing cleaning appliance and make it level with the bottom plate. Drop the electric iron from a height of 100mm onto a rigid supporting steel plate with a thickness of at least 15mm and a mass of at least 15kg. Conduct the test 4000 times at a frequency of no more than 20 times per minute. The power cleaning head of the water absorbing cleaning tool drops 1000 times on the left, right, front, and cleaning surface respectively. Technical p…
