High Temperature Braided Fiberglass Insulation Cable Wrap

14

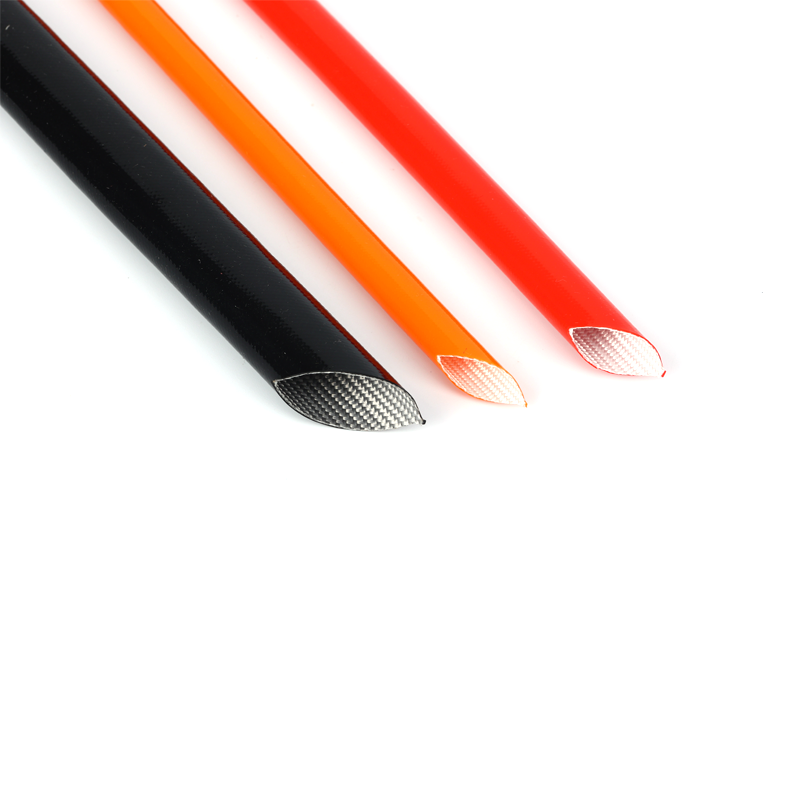

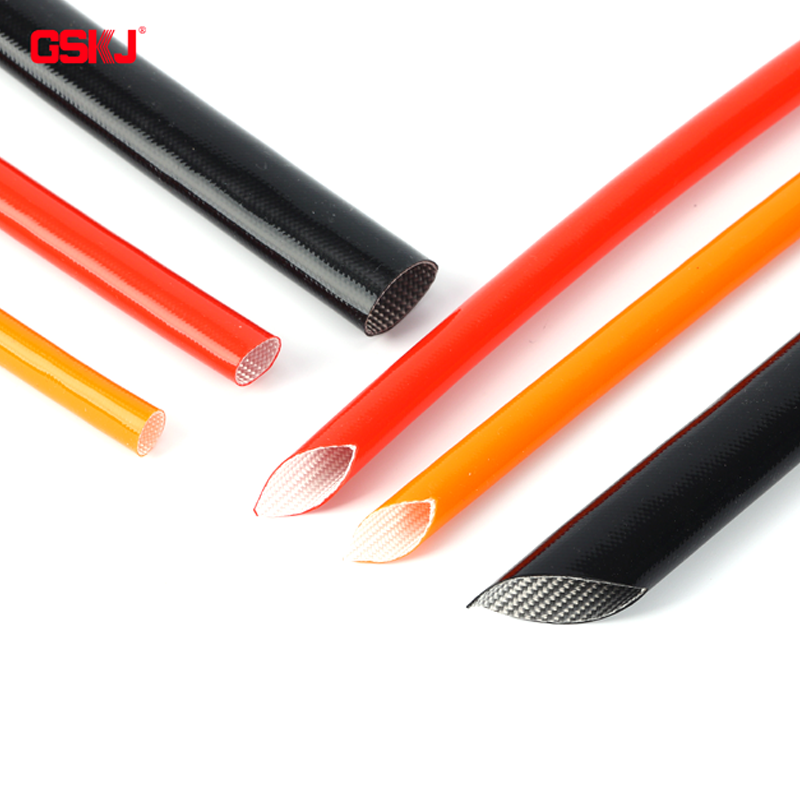

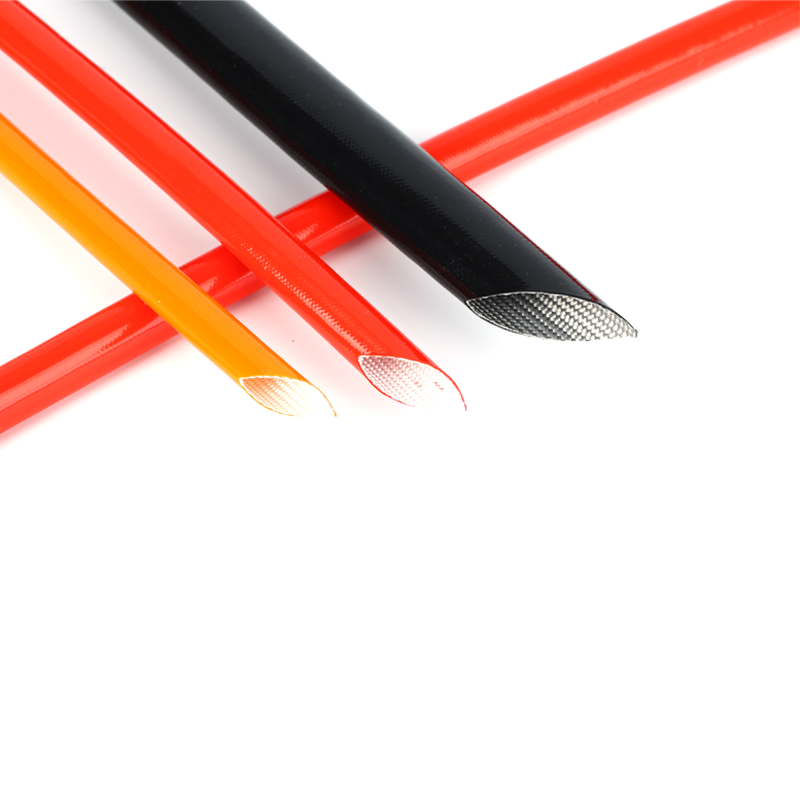

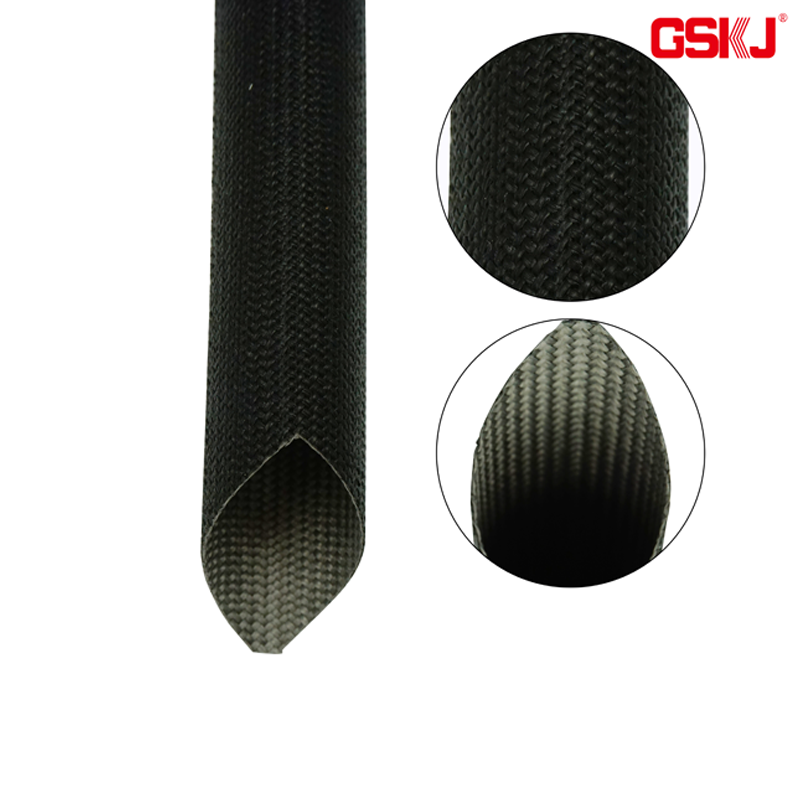

High Temperature Braided Fiberglass Insulation Cable Wrap

The High Temperature Braided Fiberglass Insulation Cable Wrap offers an advanced solution for protecting electrical systems in high-heat environments. GSKJ-SRS1 fiberglass sleeve is made of alkali glass fiber yarn with silicone rubber coated and treated at high temperature. It has good insulation, flame retardancy and flexibility than single-layer fiberglass tube. This kind of sleeve is widely used in H & N grade motors, household appliances, electric heating equipment, special lamps, and other industries requiring reliable thermal protection. Specification Sheet Part No. Specification (mm) Inner Diameter(mm) Voltage 4000V 7000V GSKJ-SRS1-008 Φ0.8 0.8+0.2 0.40±0.05 0.45±0.05 GSKJ-SRS1-010 Φ1.0 1.0+0.2 0.40±0.05 0.45±0.05 GSKJ-SRS1-015 Φ1.5 1.5+0.2 0.40±0.05 0.45±0.05 GSKJ-SRS1-020 Φ2.0 2.0+0.2 0.40±0.05 0.45±0.05 GSKJ-SRS1-025 Φ2.5 2.5+0.2 0.40±0.05 0.45±0.05 GSKJ-SRS1-030 Φ3.0 3.0+0.2 0.40±0.05 0.45±0.05 GSKJ-SRS1-035 Φ3.5 3.5+0.3 0.50±0.05 0.55±0.05…
