High-Speed Servo Plate Leveling Machine

1

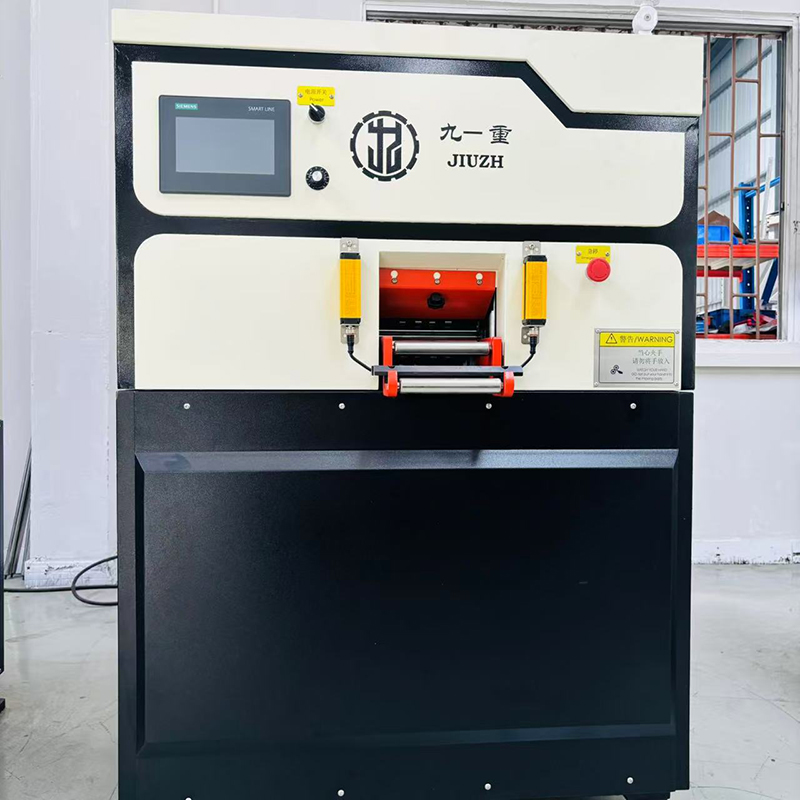

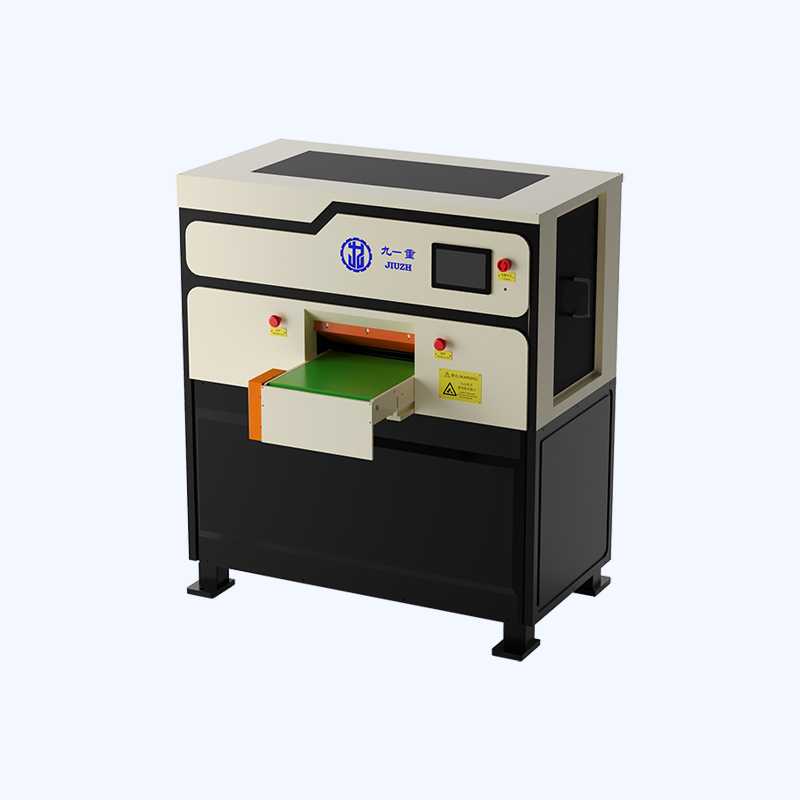

High-Speed Servo Plate Leveling Machine

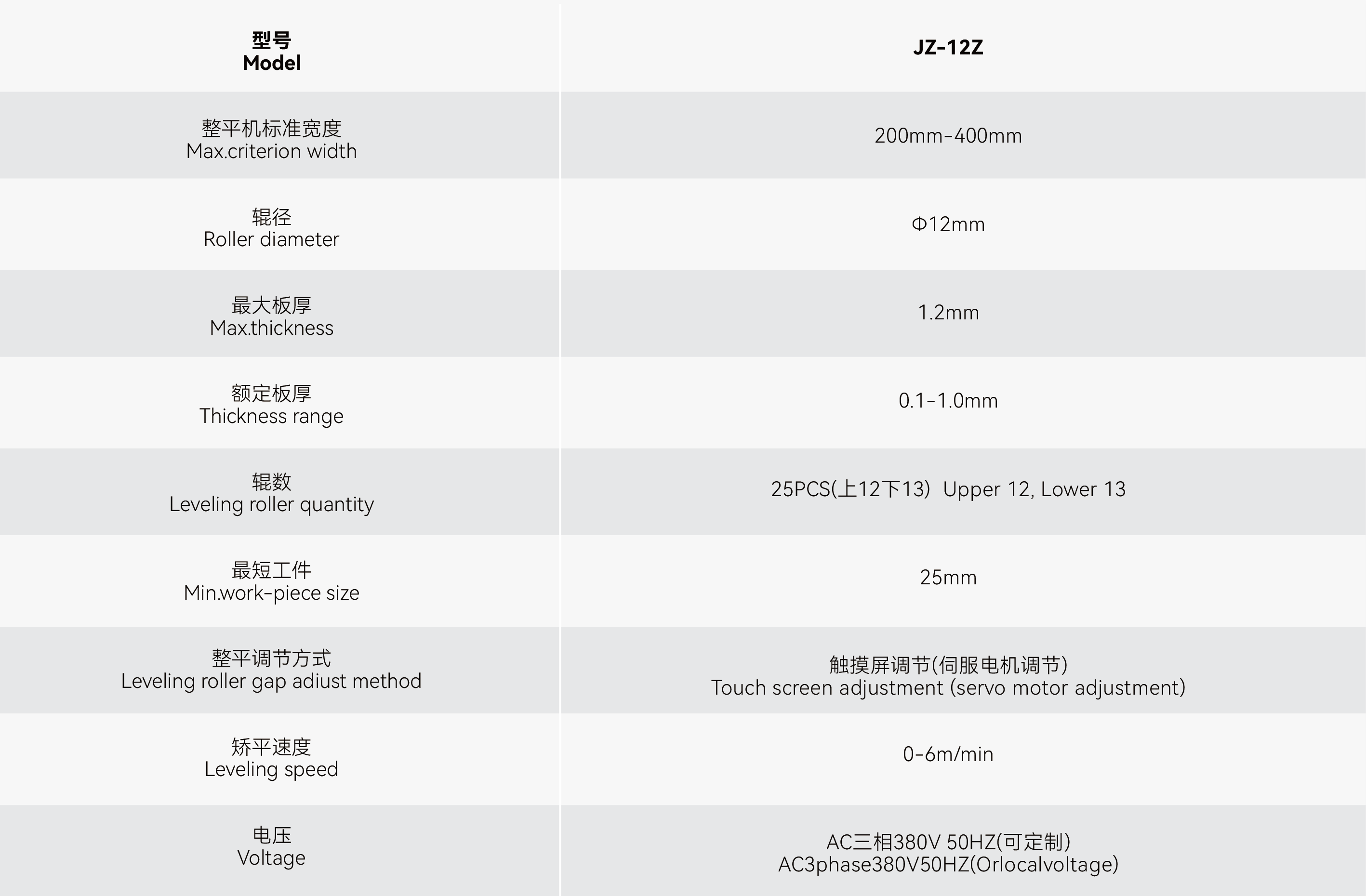

JZ-12Z(T:0.1-1.0mm)   Specialized in Metal Plate Leveling Machines with 20+ Years of Technical Expertise​ Developed through dedicated R&D, JIUZH's leveling machine applies the "Bauschinger Effect" ,sheet metal was repeatedly twisted to make metal fiber gradually consistent, eliminate internal stress, restore and improve the flatness,the precision can reach micron level.The stagger arranged support rollers ensure leveling rollers bearing heavy pressure in balance without bending deformation, keeping the whole equipment have enough rigidity. Upper and lower support roller column & upper and lower leveling roller group making up four-high or six-high layers structure, ensuring stable, efficient and high-quality leveling performance. High-speed efficiency without loss of speed: The feeding speed of the servo drive is over 40% faster than that of conventional servo models. Combined with the hydraulic system, it offers rapid pressure response. The processing time for a single shee…
