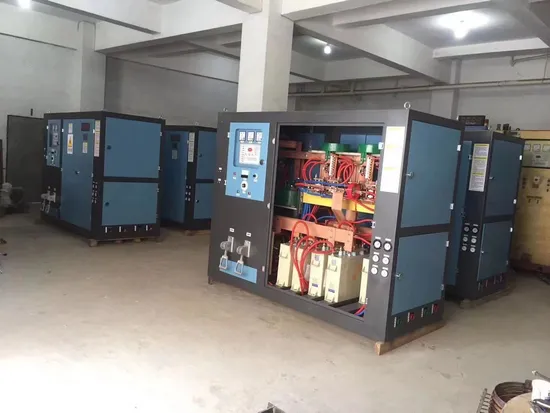

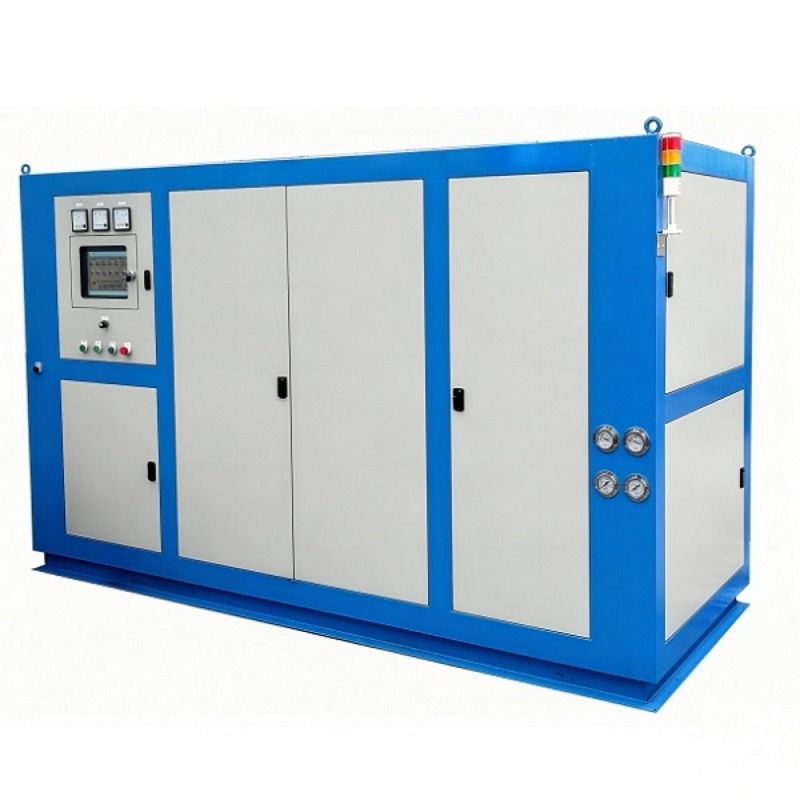

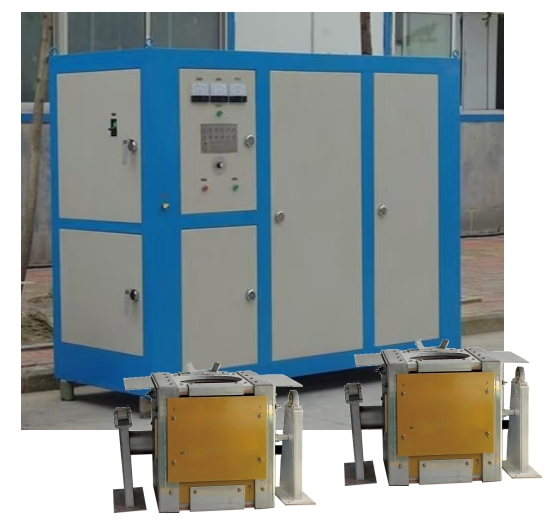

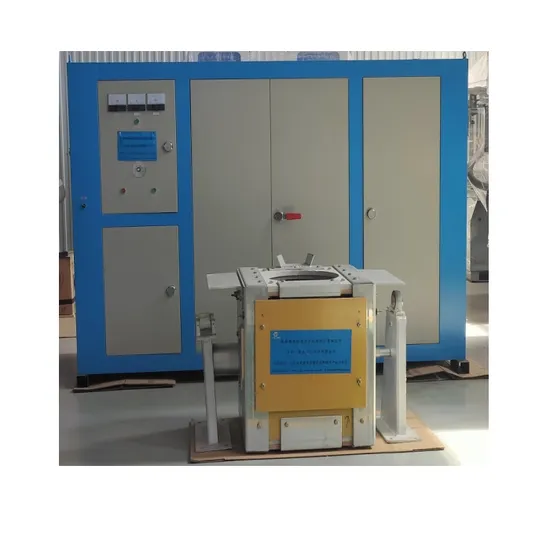

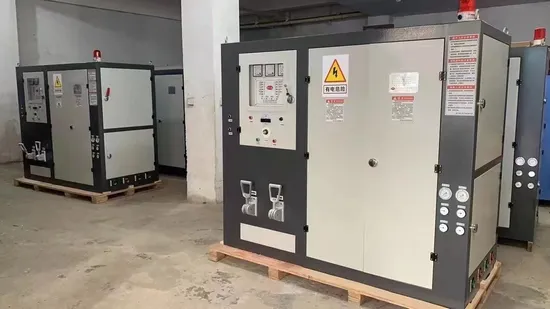

High frequency induction melting furnace
Model YN-ZPL-100/500 Rated power 175KW Rated melting 150kg(can be customized) Rated frequency 3000Hz Furnace voltage rated at 1800V Melting time less than 25 minutes/furnace (stainless steel) Input three-phase 380V, 265A and 50Hz Output rated at 175KW and 1800V External dimension 2850*1100*1920mm Weight 1810kg Product DescriptionΔSupport customizationΔApplication: For rapid melting of metal materials, it is more advantageous in the process of melting non-ferromagnetic materials such as stainless steel. ΔIntroduction:The medium frequency melting furnace is widely used in the fields of cast iron, stainless steel, copper, aluminum, lead, gold, silver, silicon, and special alloys. Because of its fast melting speed, less burning loss, easy to start, automatic stirring, significant power saving, etc., it has been widely praised.ΔFeatures:√1. High efficiency: series inverter is adopted to improve the furnace voltage and frequency, which greatly improves t…
