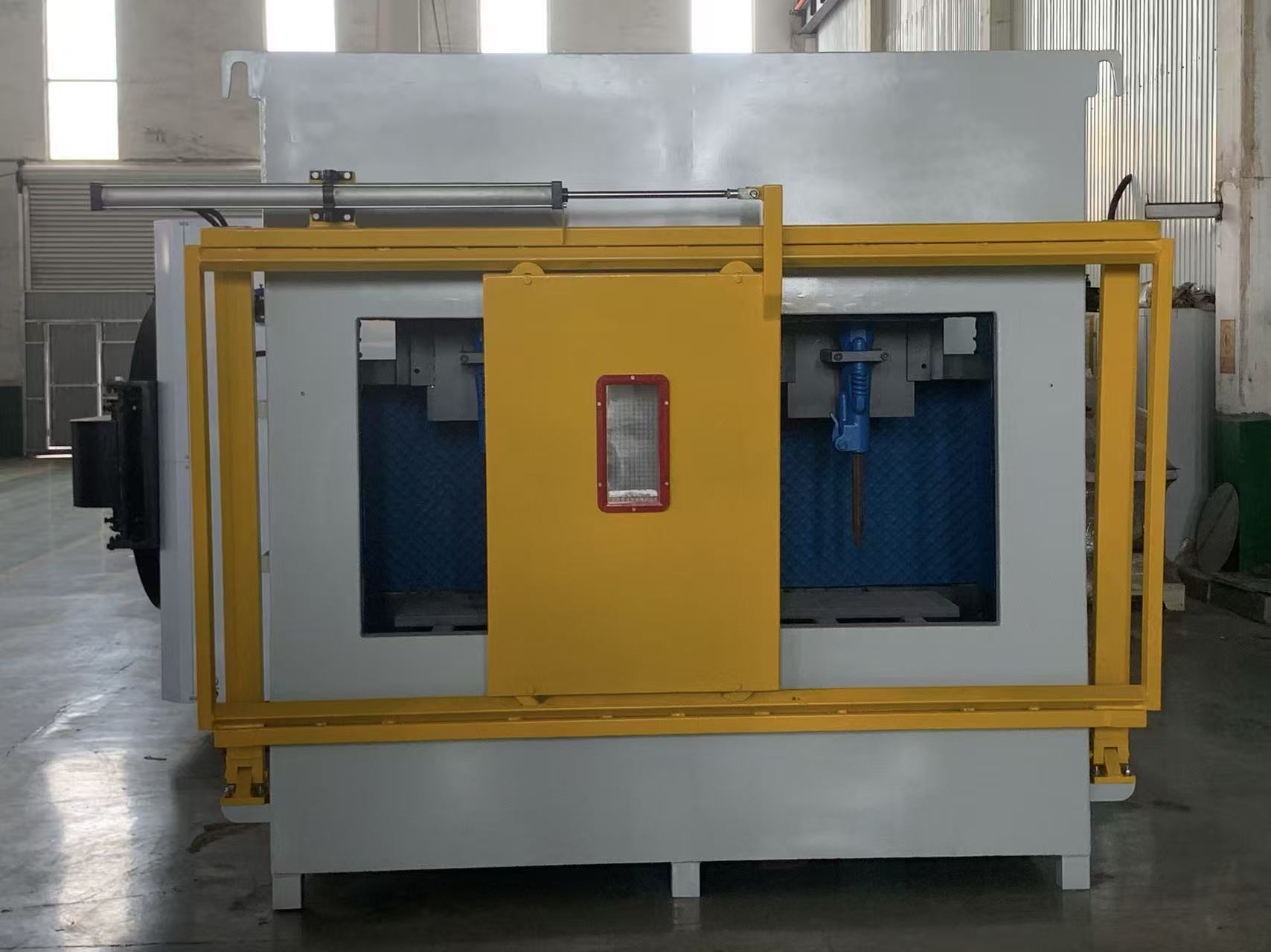

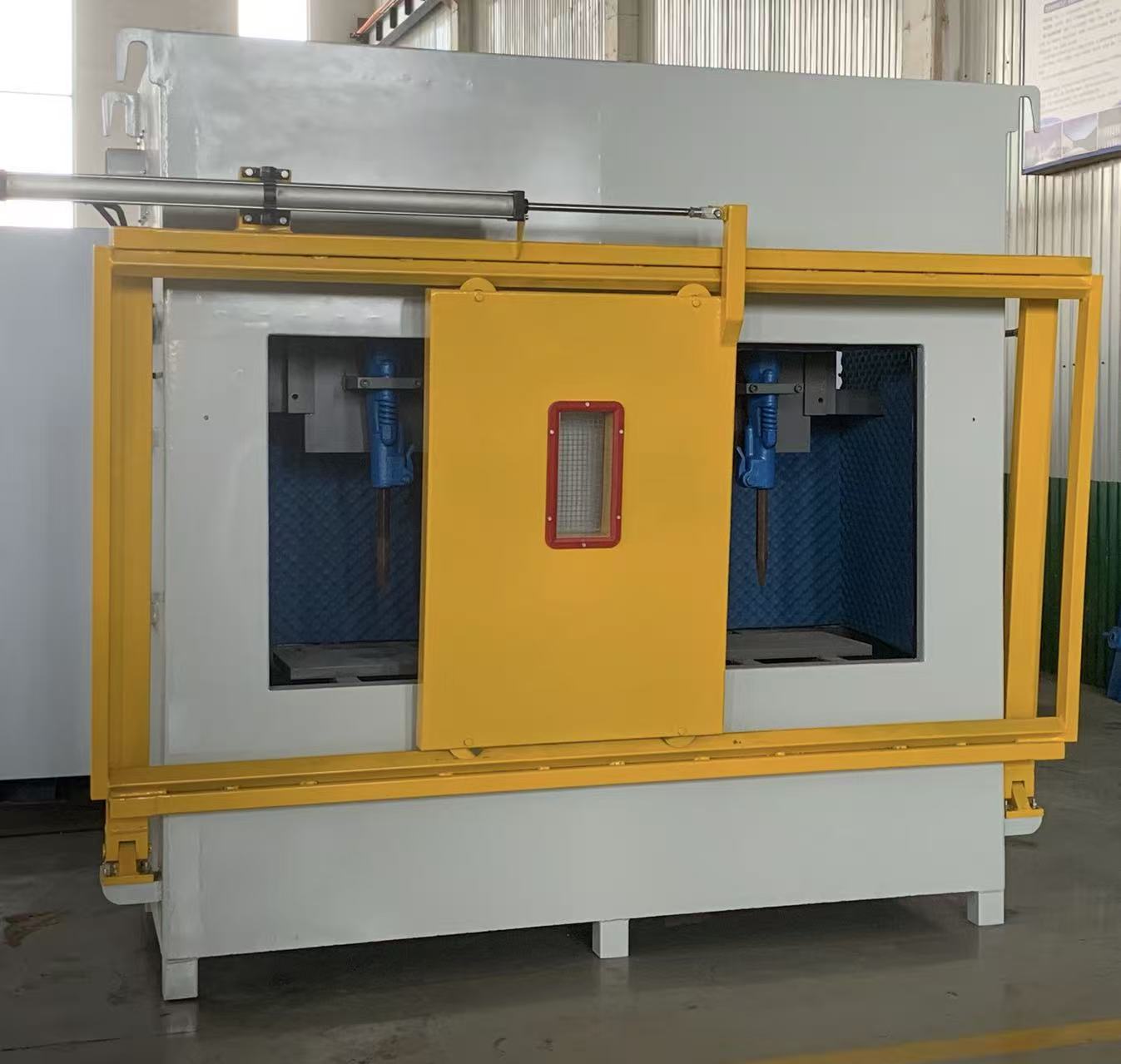

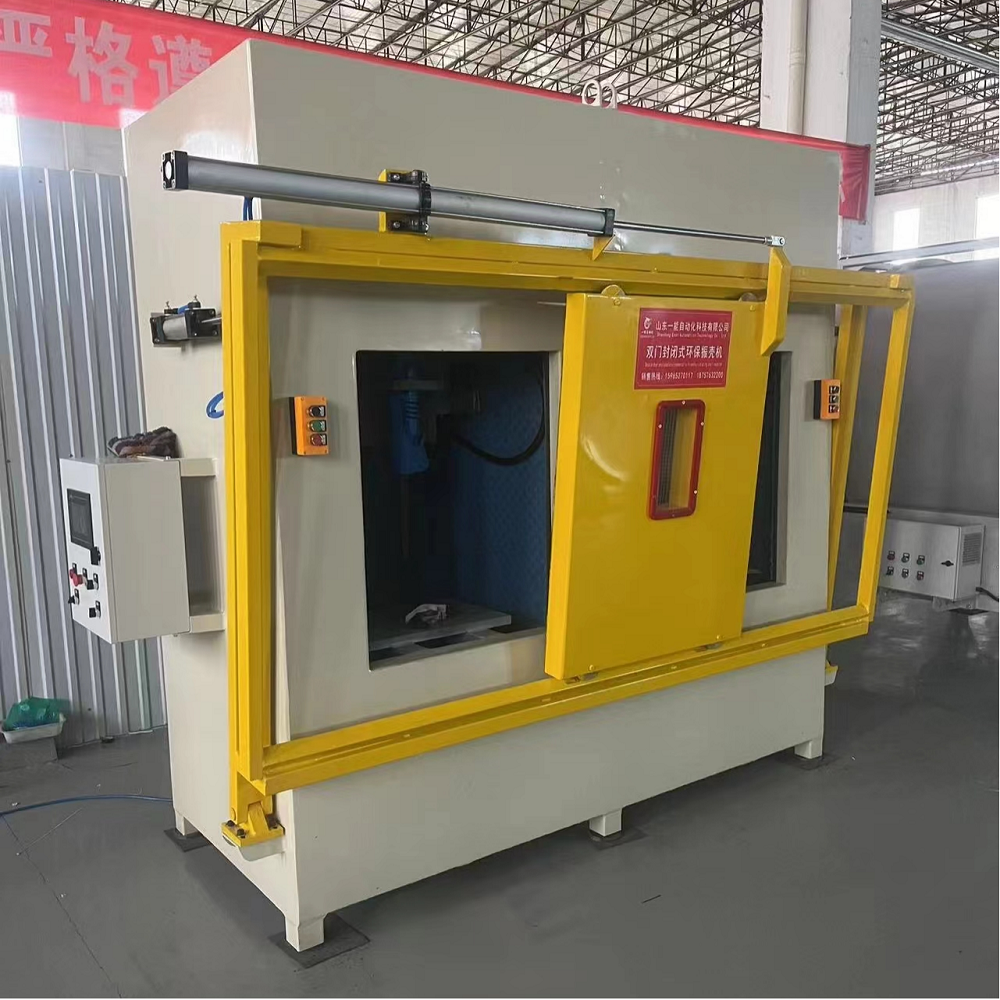

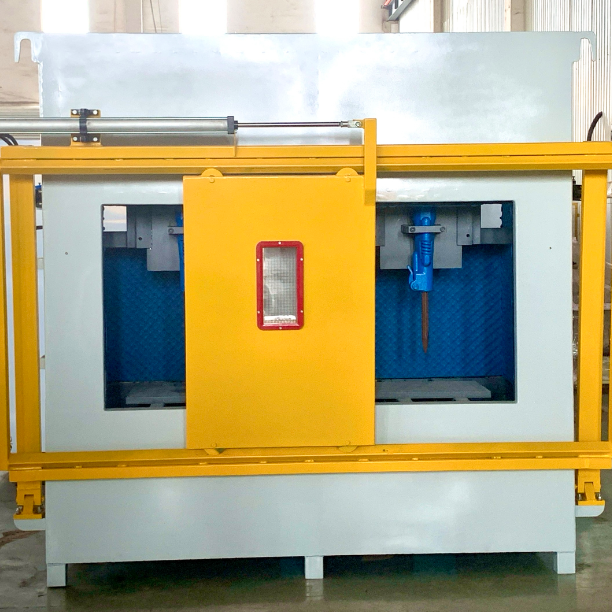

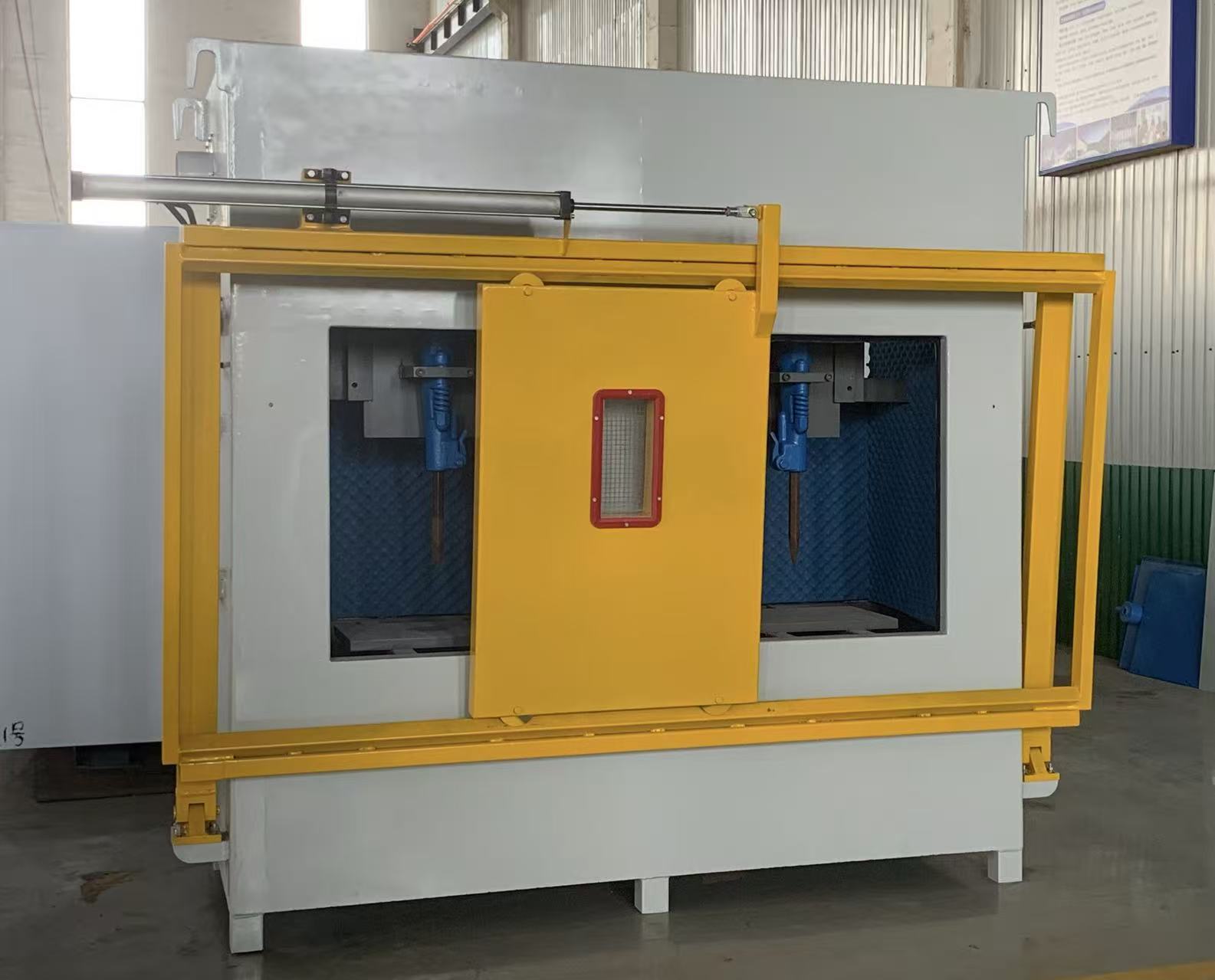

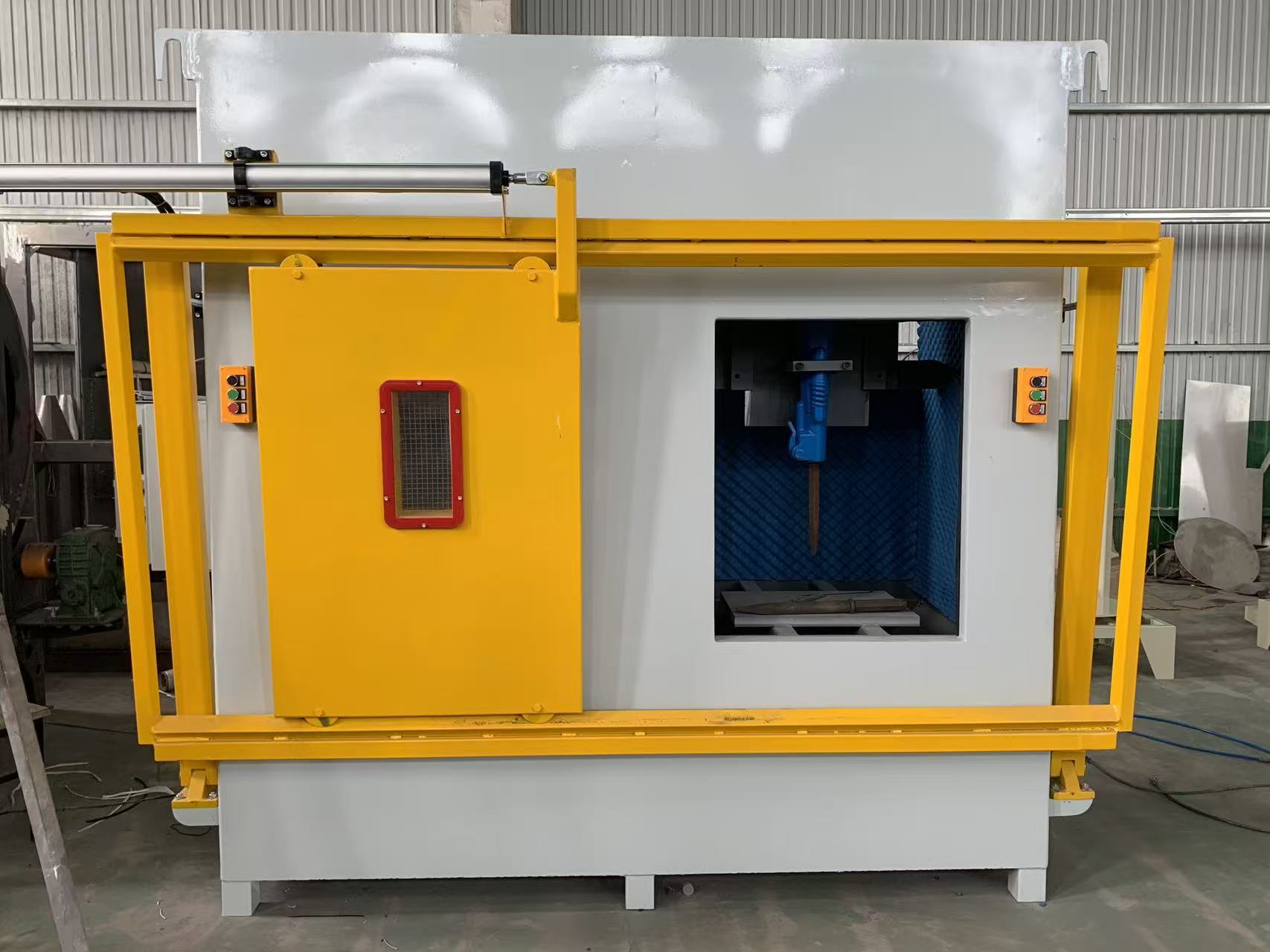

Double-door fully enclosed vibration shelling machine

2

Double-door fully enclosed vibration shelling machine

  1,Technical parameters Model YN-HZK-950*2 Can be installed in the shell space 500X450mm Maximum height of pickaxe: 600mm Vibrating rod lifting heigh 300mm Countertop size 500×630mm Dimensions (L)2600×(W)1400×(H)2600mm   2,Main structural features: 1. This machine uses CB-87 crusher to provide impact energy, and the impact operation is controlled by remote pneumatic and electronic control.2. The chassis of this machine is installed on a vibration-isolating cement foundation to reduce ground-borne noise. At the same time, this machine adopts a cover-type sound insulation and sound-absorbing system to completely isolate the equipment from the outside world when vibrating the shell, blocking air-borne noise and making the ground Absorb vibration energy to ensure the operating noise of this machine is less than 120dB 3. The lower slag opening of this machine is sealed by a side push of a cylinder, and is equipped with a residual…
