Custom Size Braided Cable Sleeve Durable

2

Custom Size Braided Cable Sleeve Durable

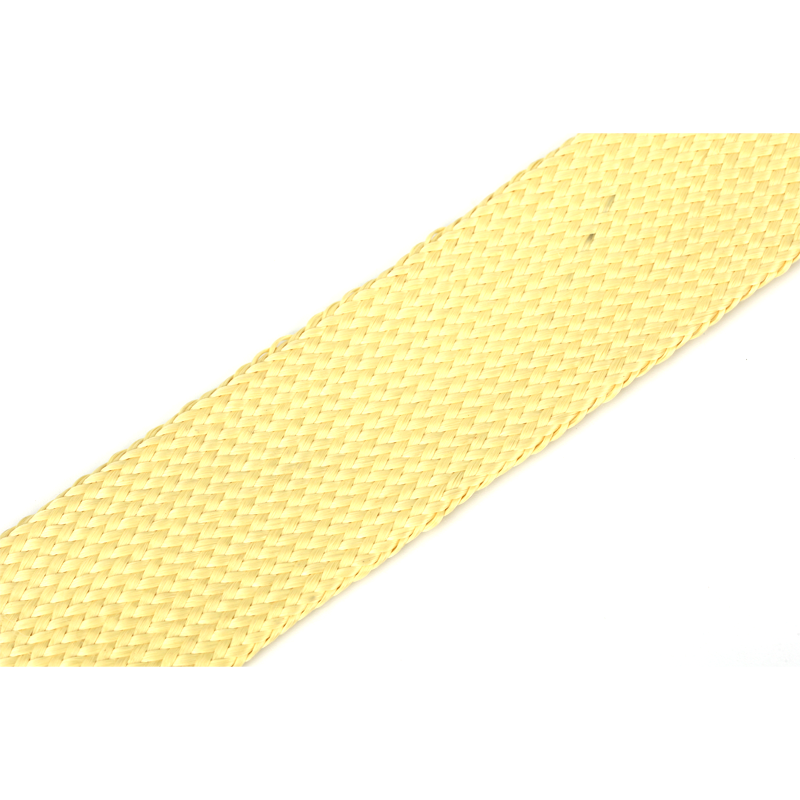

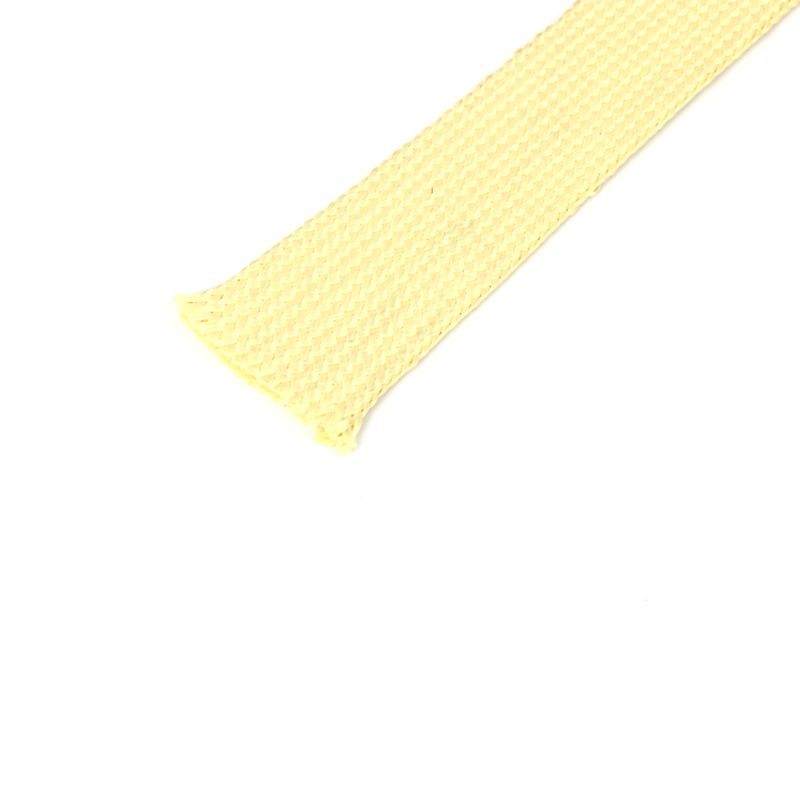

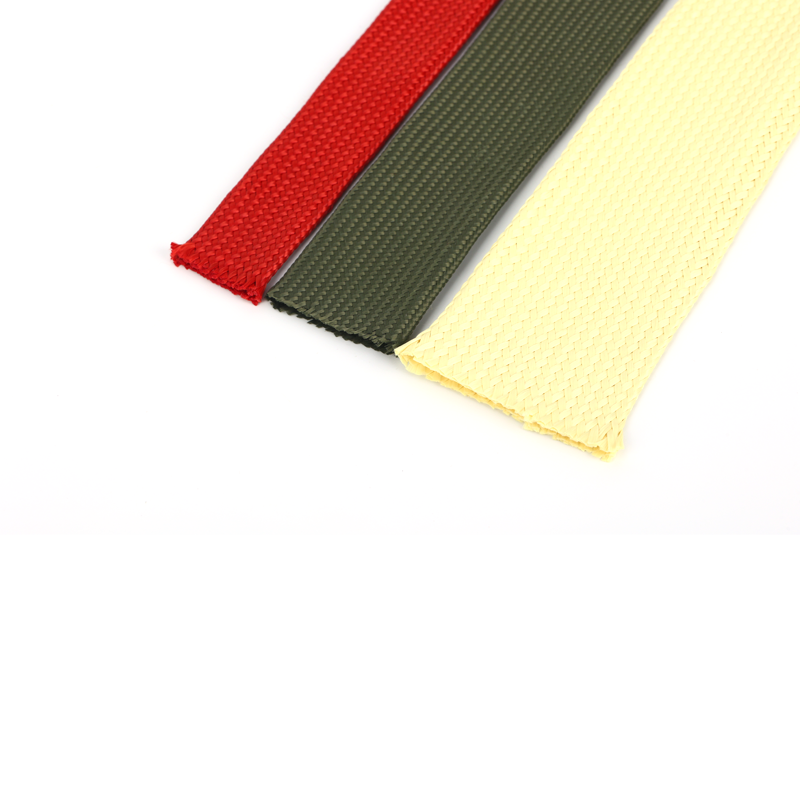

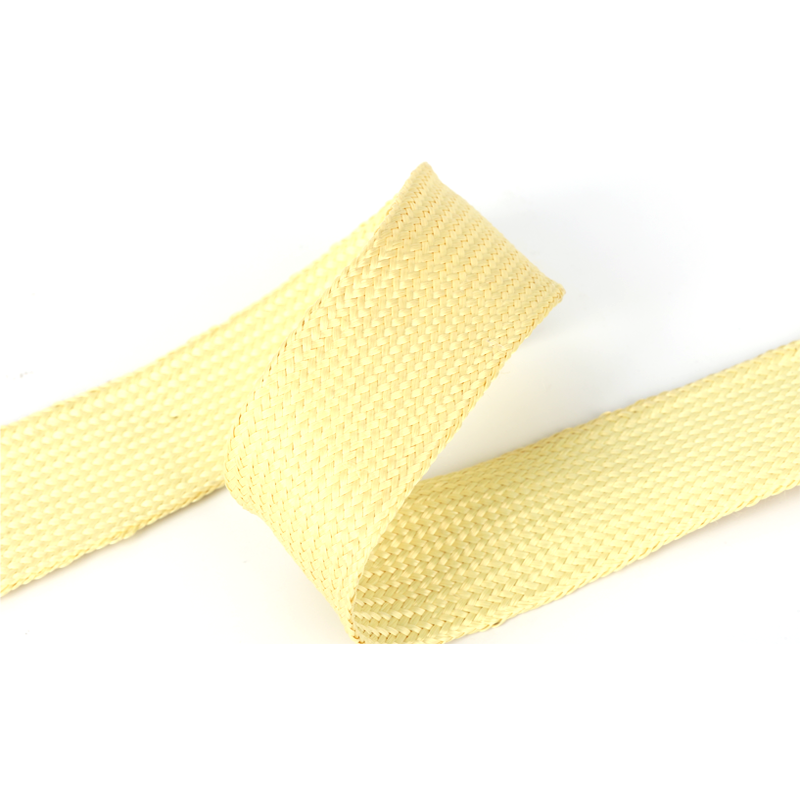

The Custom Size Braided Cable Sleeve is a high-strength protective solution designed for industrial, automotive, and machinery wire harnesses. Woven from aramid (Kevlar) fiber material, it combines excellent abrasion resistance, moisture resistance, high-temperature tolerance, strong tensile strength, lightweight design, and overall stability, providing robust protection for wires and hoses in harsh working environments. Its braided construction ensures high durability while maintaining flexibility to accommodate complex wiring layouts and tight spaces, keeping installations organized and secure. Specification sheet Part No. Nominal size - W Expandable range Packing -L Inch mm Min.I (mm) Max.O (mm) standard spool GSKJ-KLB-003 1/8″ 3 2 ≥3 100M/R GSKJ-KLB-006 1/4″ 6 4 ≥5 100M/R GSKJ-KLB-008 5/16″ 8 5 ≥6 100M/R GSKJ-KLB-010 3/8″ 10 6 ≥7 100M/R GSKJ-KLB-012 1/2″ 12 8 ≥9 100M/R GSKJ-KLB-016 5/8″ 15 10 ≥11 100M/R GSKJ-KLB-019 3/4″ 20 12 ≥14 50/R GSKJ-KLB-023 1″…
