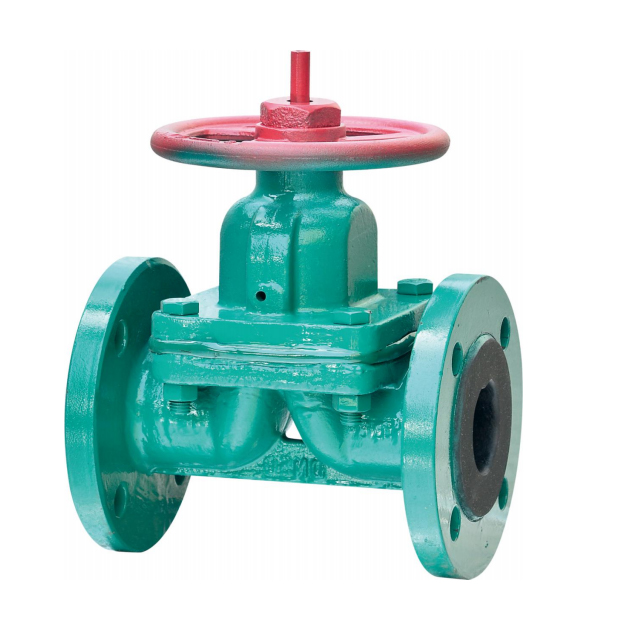

Cast Steel Rubber‑Lined Diaphragm Control Valve

2

Cast Steel Rubber‑Lined Diaphragm Control Valve

Product Overview Our Cast Steel Rubber‑Lined Diaphragm Control Valve is a high‑performance Diaphragm Valve built for heavy‑duty industrial environments. As a premium Industrial Diaphragm Valve, it can also be customized as a Sanitary Diaphragm Valve and ANSI Diaphragm Valve to satisfy diverse application standards. The rubber‑lined interior delivers reliable anti‑corrosion protection, this diaphragm control valve is suitable for medium and high‑pressure medium control, and its temperature resistance performance is better than cast‑iron valves. It is widely applied for fluid transmission systems in petroleum, chemical, electric power and other industrial fields. Main Material Configuration Valve Body HT200/WCB/CF8, etc. Lining NR/EPDM/NBR, etc. Diaphragm NR/EPDM/NBR, etc. Disc HT200/WCB/CF8, etc. Stem 45#/2Cr13/304, etc. Handwheel HT200 Stem Nut QT450 Bolt A3 Nut A3 Available Nominal Diameter (Size) DN15 DN20 DN25 DN32 DN40 DN50 DN65 DN80 DN100 DN125 DN150…
