Aluminum Foil Corrugated Tubing for High Temp Protection

2

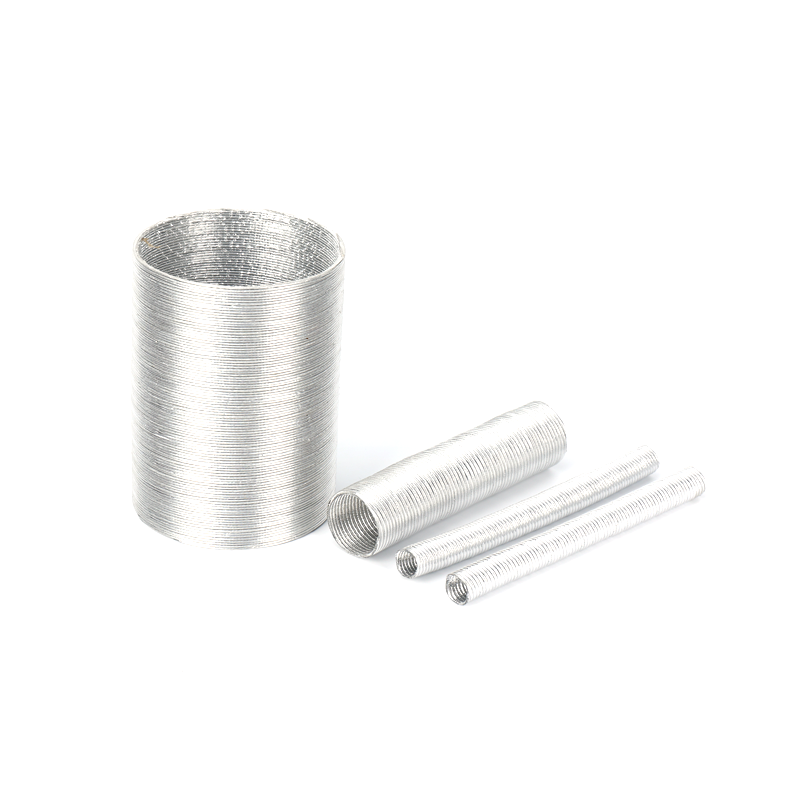

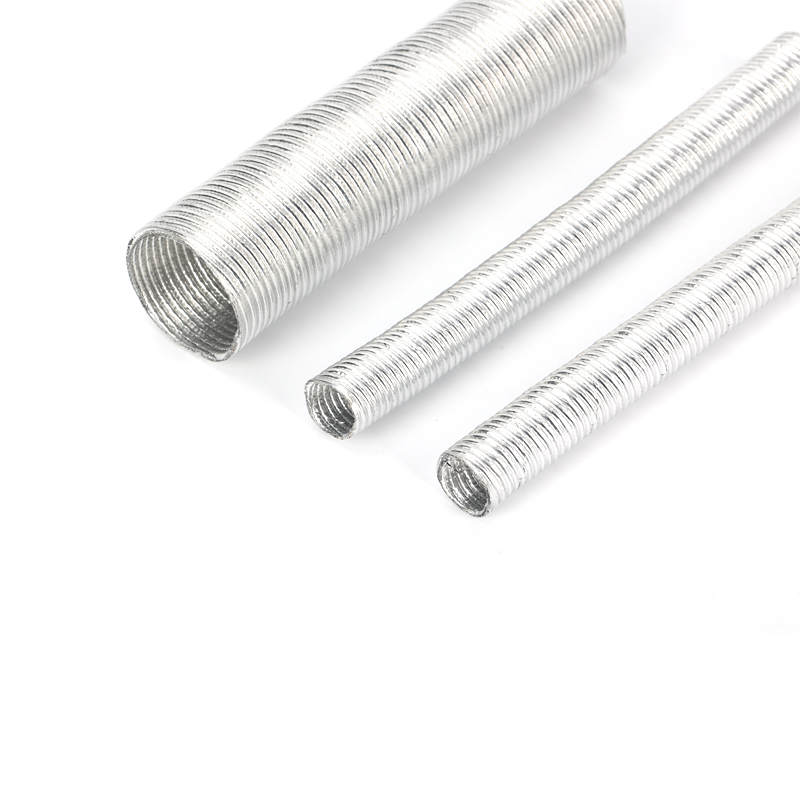

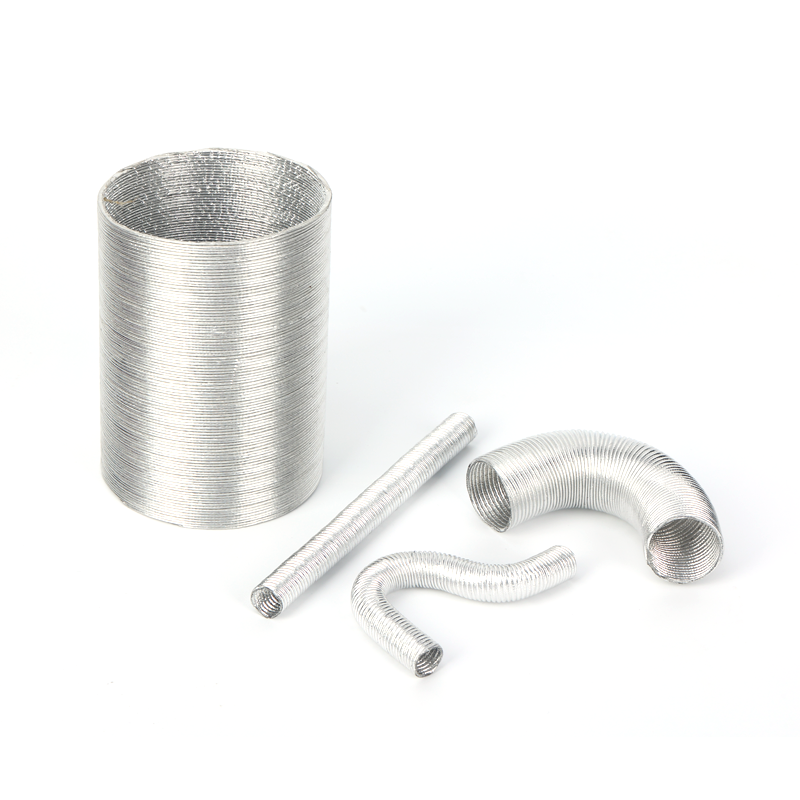

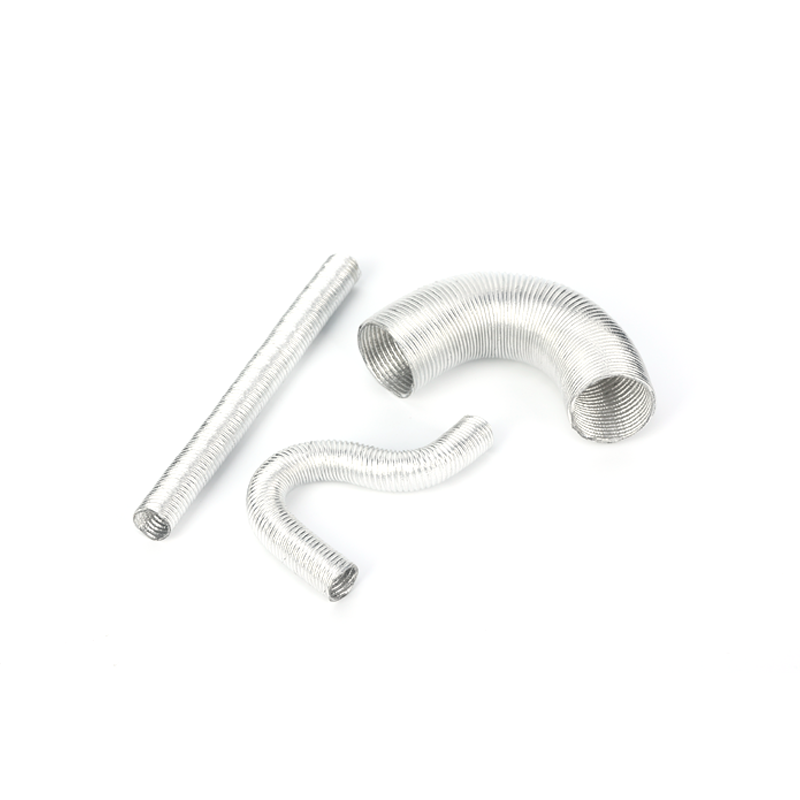

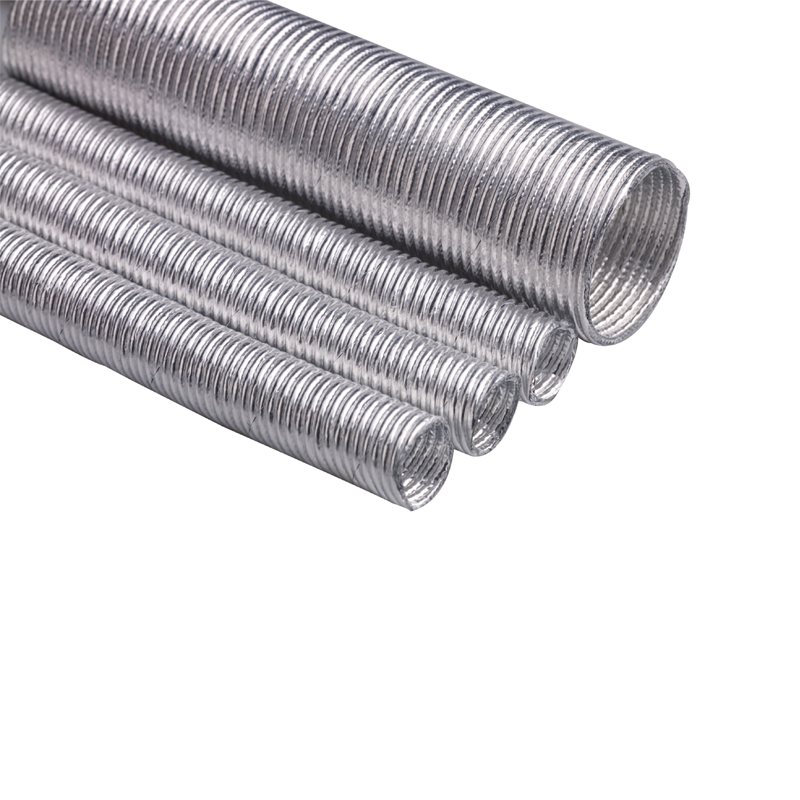

Aluminum Foil Corrugated Tubing for High Temp Protection

The Aluminum Foil Corrugated Tubing for High Temp Protection is engineered as a durable and flexible thermal shielding solution, widely used in automotive, marine, and industrial wiring systems. Its corrugated structure not only enhances flexibility during installation but also ensures long-lasting resistance to harsh environments where both mechanical protection and high-temperature insulation are required. The tubing effectively safeguards electrical harnesses, fuel lines, and hydraulic hoses against radiant heat, chemical exposure, and vibration. Specification Sheet Part No. Inner Dia.(mm) Outer Dia(mm) Packing/m GSKJ-AFB-0110 11±0.3 14.2±0.3 Upon to the requirement GSKJ-AFB-0145 14.5±0.3 17.5±0.3 GSKJ-AFB-0200 20±0.5 23.3±0.5 GSKJ-AFB-0240 24±0.5 27.2±0.5 GSKJ-AFB-0250 25±0.5 28.5±0.5 GSKJ-AFB-0260 26±0.5 29.5±0.5 GSKJ-AFB-0270 27±0.5 30.5±0.5 GSKJ-AFB-0280 28±0.5 31.3±0.5 GSKJ-AFB-0290 29±0.5 32.3±0.5 GSKJ-AFB-0320 32±0.5 36±0.5 GSKJ-AFB-0340 34±0.…
