Advanced Ballpoint Pen Assembly Device

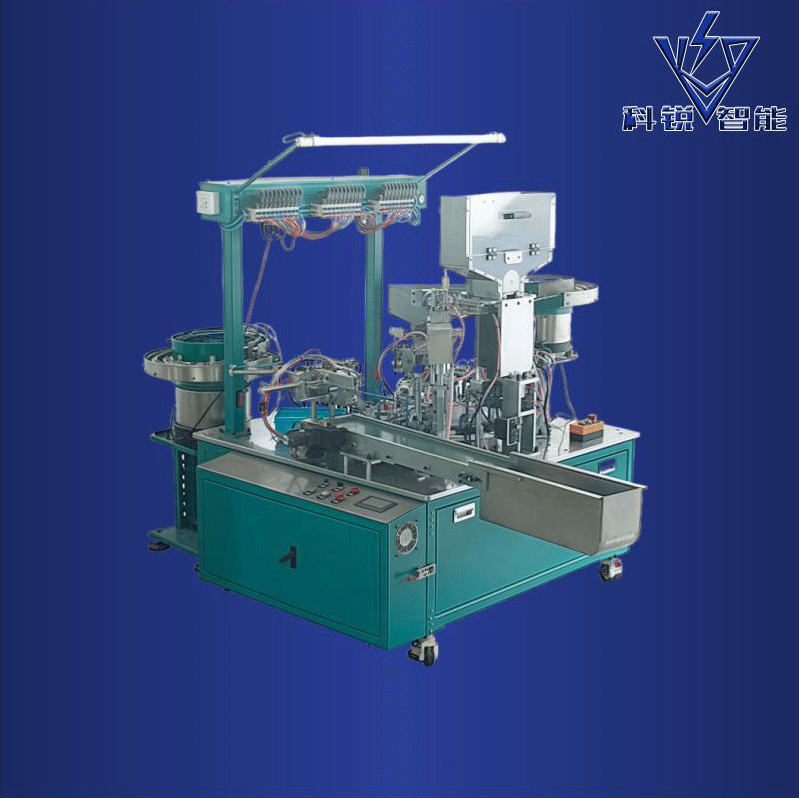

The ballpoint pen assembly machine (one out of two) is a dual-station automated equipment specially designed for the overall assembly of ballpoint pens. It focuses on the coordinated assembly of pen barrels, pre-installed pen cores, pen caps, and pressing/rotating components. It is suitable for the batch production of ballpoint pens with specifications ranging from 0.5 to 1.0mm and can simultaneously complete the full-process assembly of two ballpoint pens, taking into account both structural compatibility and production efficiency. ​ The equipment adopts a dual-track parallel assembly structure and optimizes the process based on the characteristics of ballpoint pens: The pen lead implantation station is equipped with an eccentricity correction mechanism to ensure that the concentricity error between the pen lead and the pen barrel is ≤0.05mm, avoiding writing lag. The assembly station of the pressing component is equipped with a torque control system (adjustable from 0.3 to 1.2N · m)…
