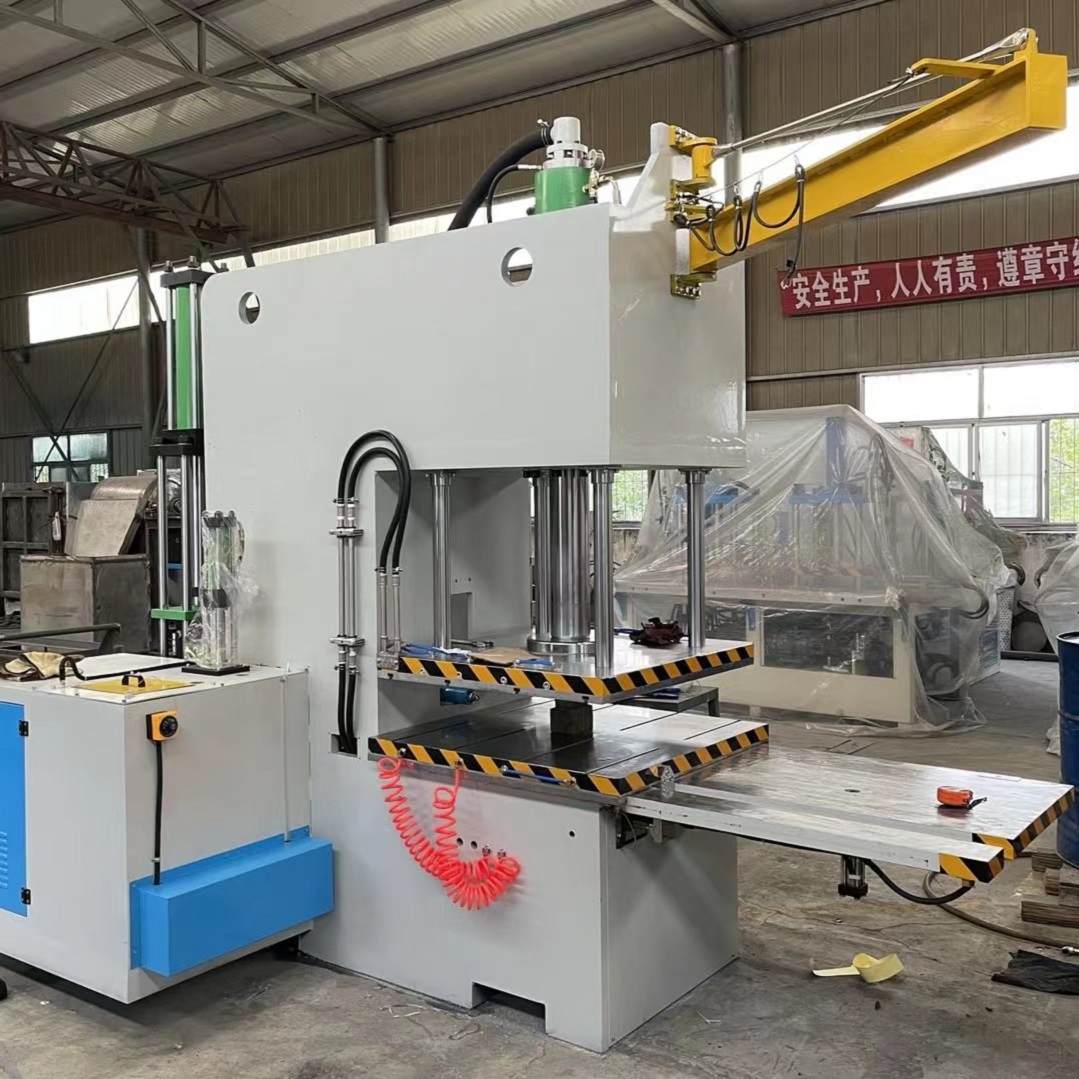

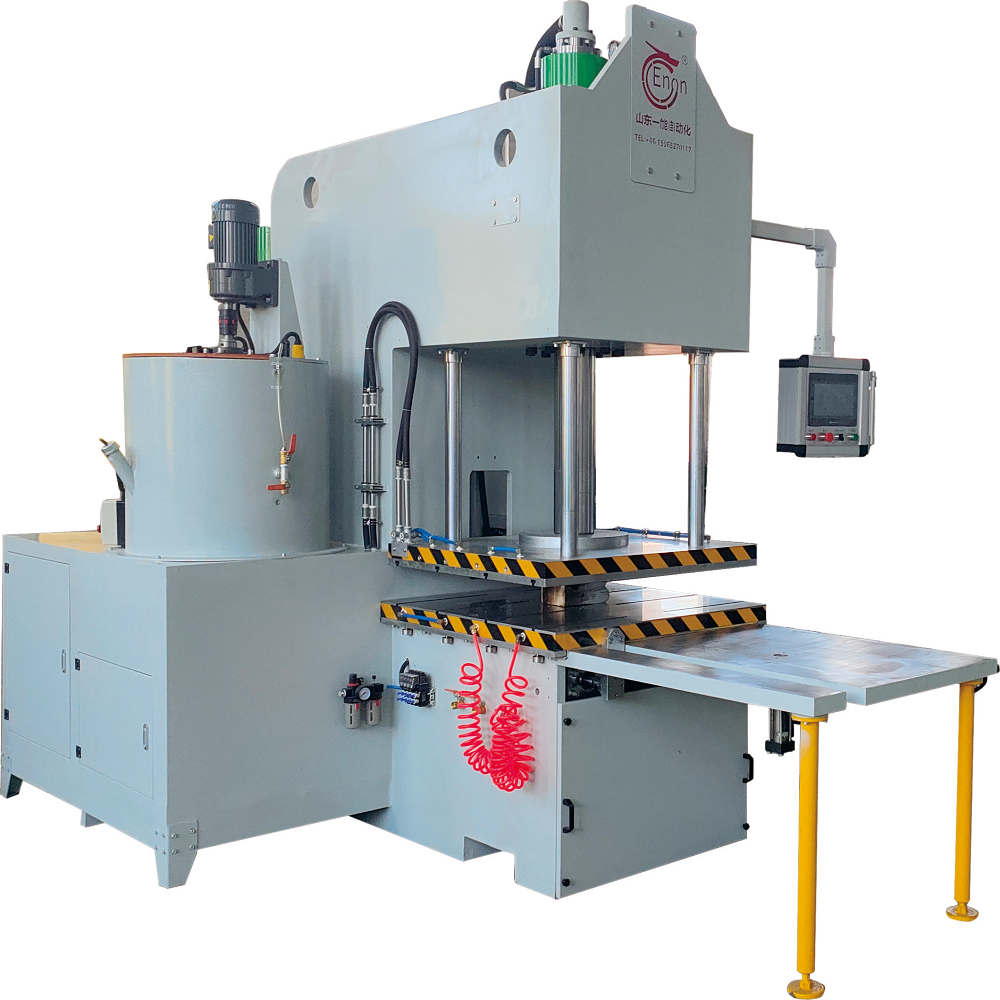

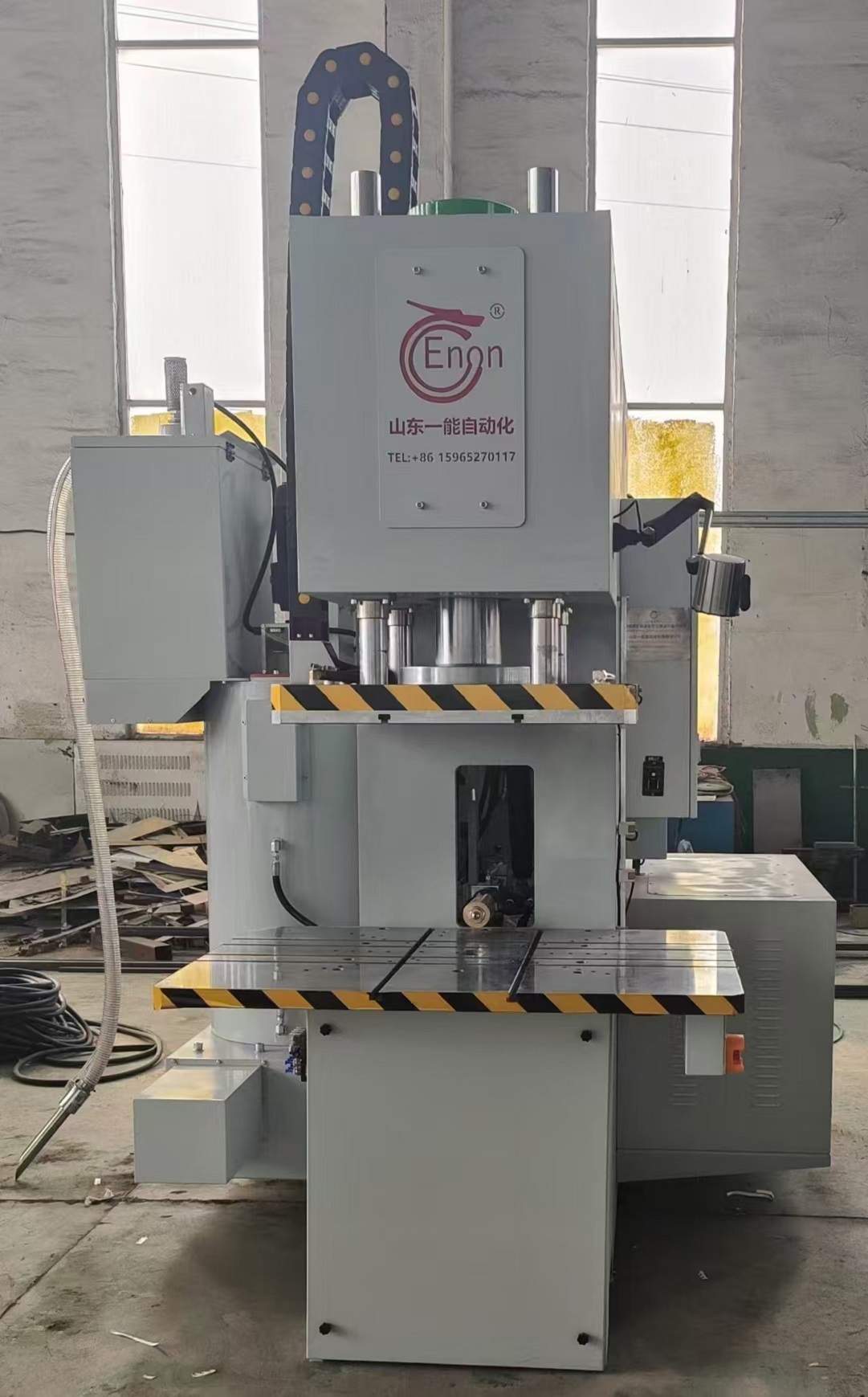

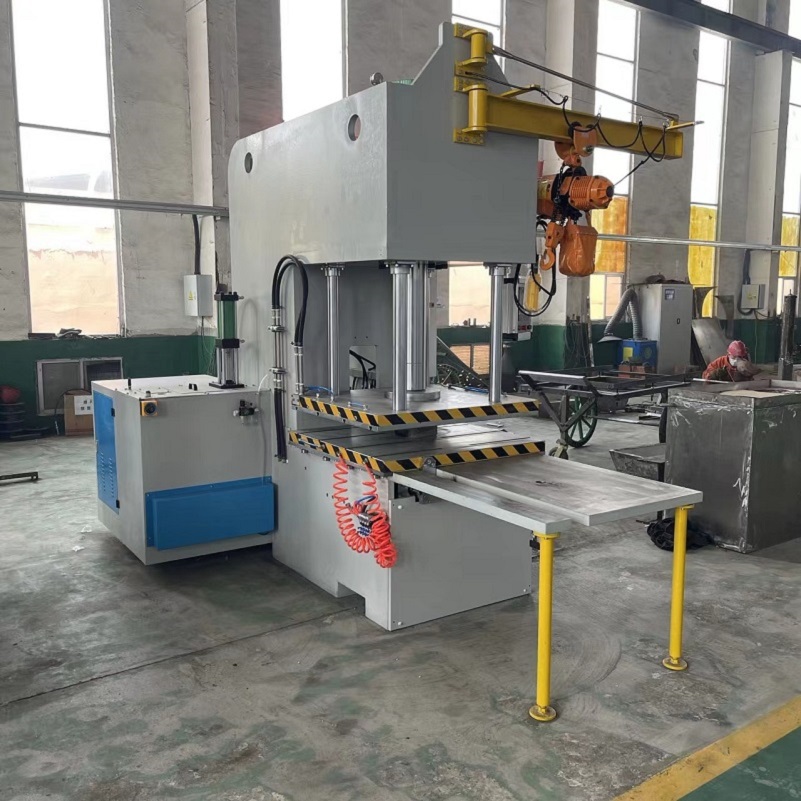

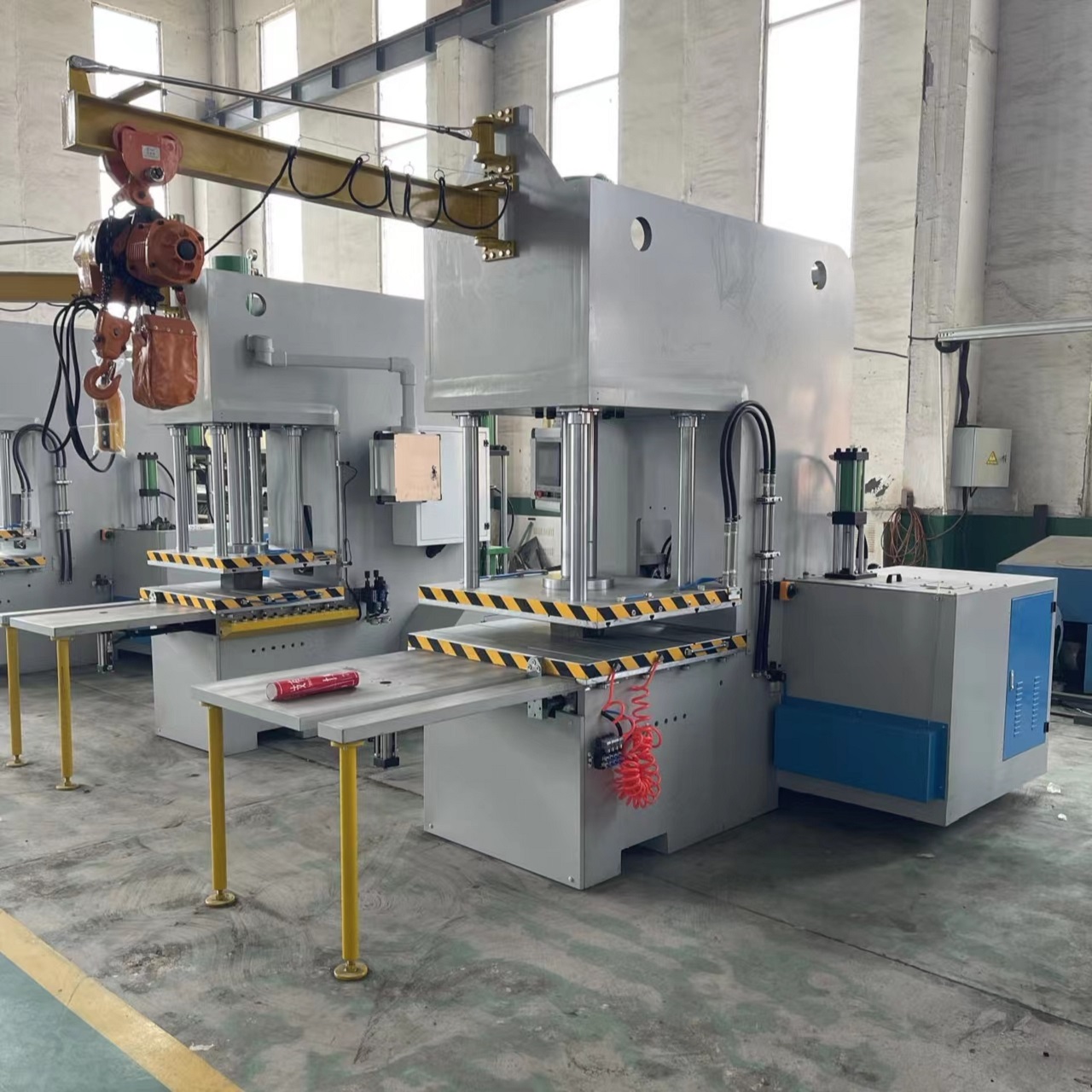

30T C-type single-station wax injection machine

1

30T C-type single-station wax injection machine

1,Technical parameter   Explain Unit YN-DMZ-30CB-Y Clamping force (max) T 30 Mold use space(L×W×H) mm 800×700×600 Up and down the mold trip mm 600 Minimum height of the mold mm 100 hydraulic oil tank L 175 PLC+Touch screen YES/NO YES The nozzle is electrically powered up and down YES/NO YES Mold use form   Can be up and down fixed automatic mode, hand push single mode or double mode Paraffin pressure form   Single and multiple segments can be selected Maximum wax injection (wax cylinder) L 10 Maximum injection pressure MPa 0~10 (Hydraulic variable pressure control ) C-Type Single-Station 30T Wax Injection Molding Machine: An Efficient Tool for Precision Casting In the field of precision casting, the C-Type single-station 30T wax injection molding machine, with its superior performance and efficient operation, has become an ideal choice for many foundries. This article will provide a detailed introduction to the technical specifications, feat…
