200-model Skylark Series Rotary Tiller Equipped with Single-disc Small Reclaiming Knives

189

200-model Skylark Series Rotary Tiller Equipped with Single-disc Small Reclaiming Knives

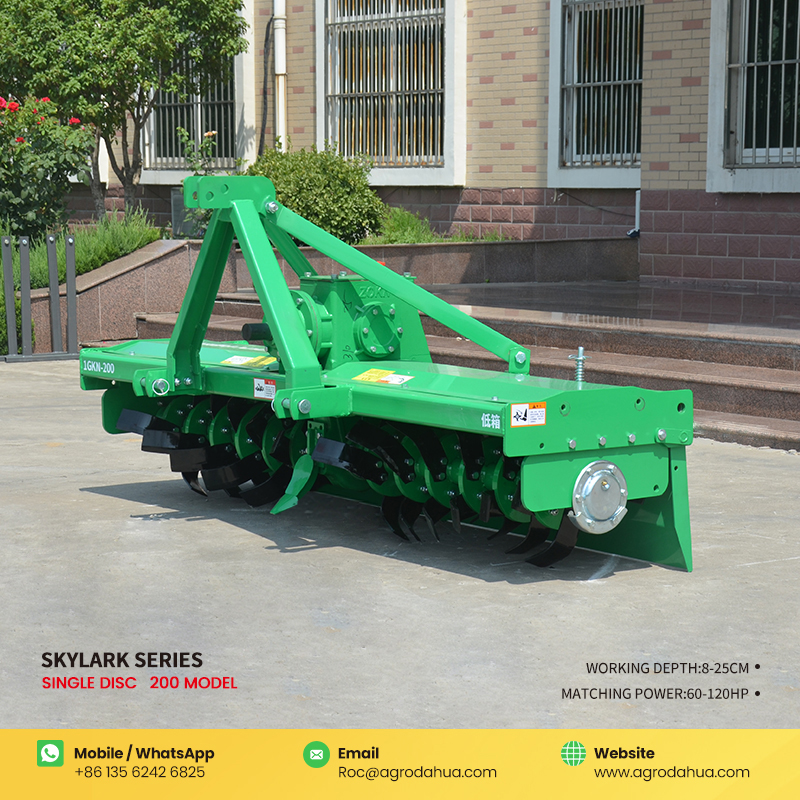

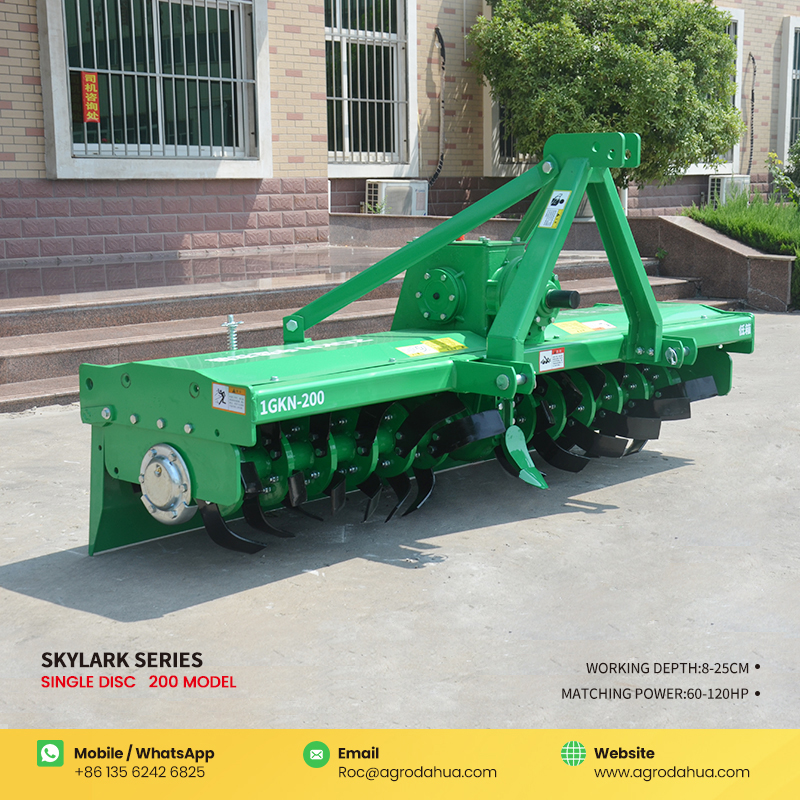

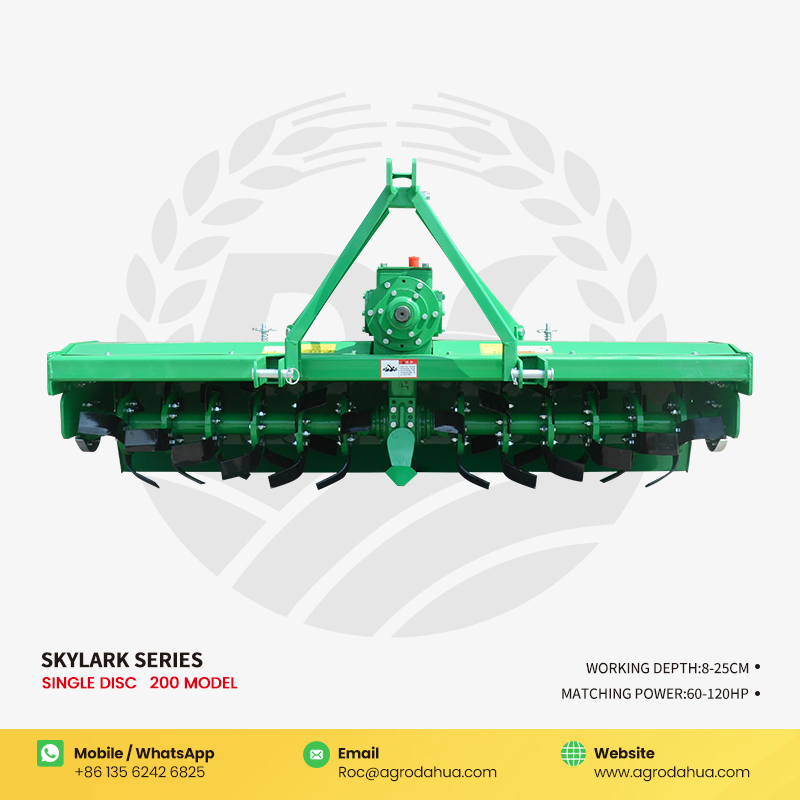

The Skylark Series Rotary Tillers are equipped with a centrally mounted 8-module gearbox and can be matched with tractors of 40-80 horsepower, with an operating width ranging from 150 cm to 200 cm. They are fitted with a single-disc small reclamation cutter shaft. The cutter disc is manufactured using the forging process of No. 45 steel and has a diameter of 22 cm, ensuring more stable operating depth. The blades are made of 60 silicon-manganese steel, with a single blade weighing approximately 710 grams. The cutter disc and blades adopt an embedded design during the installation process, which ensures reliable operation and prevents blade detachment. For soil covering, optional configurations include a drag plate, a light cage-type packer roller, and for some models, a heavy-duty spiked packer roller is also available as an option.   产品型号 Product Model 单位Unit SKYLARK 160 (SD) SKYLARK 180 (SD) SKYLARK 200 (SD) 外形尺寸(宽)Total Width (W) mm 1810 2056 2256 外形尺寸…
