YESWITCH HT802 ON-ON Toggle Switch

4

YESWITCH HT802 ON-ON Toggle Switch

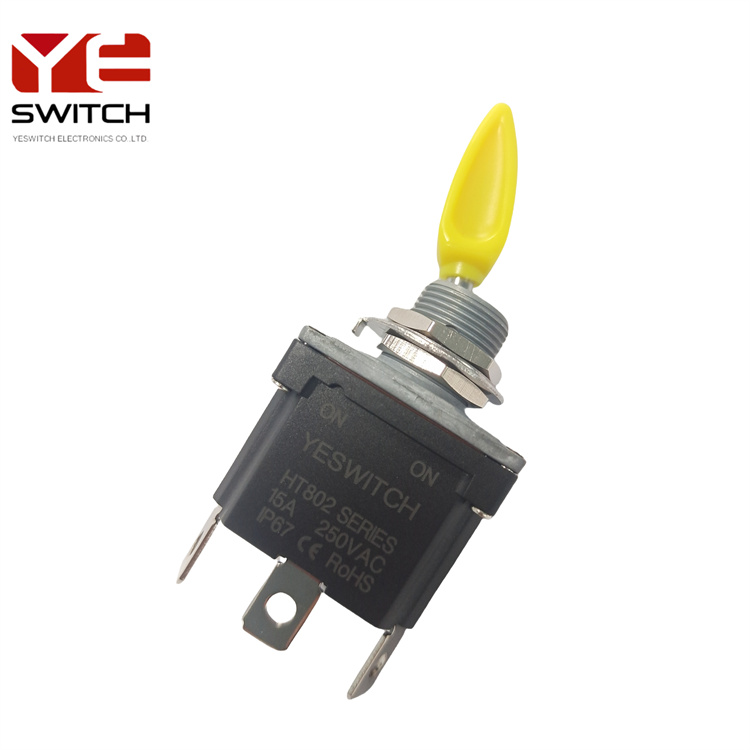

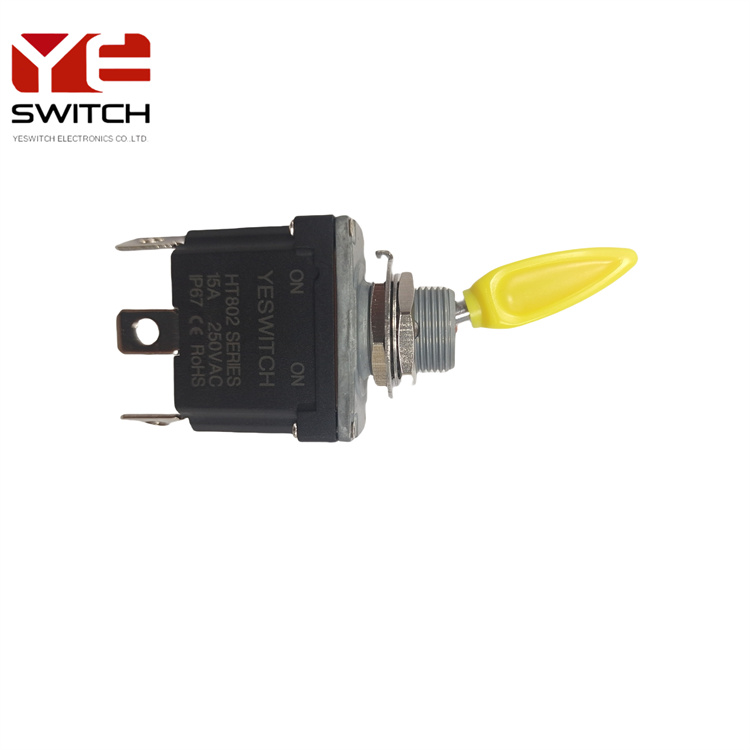

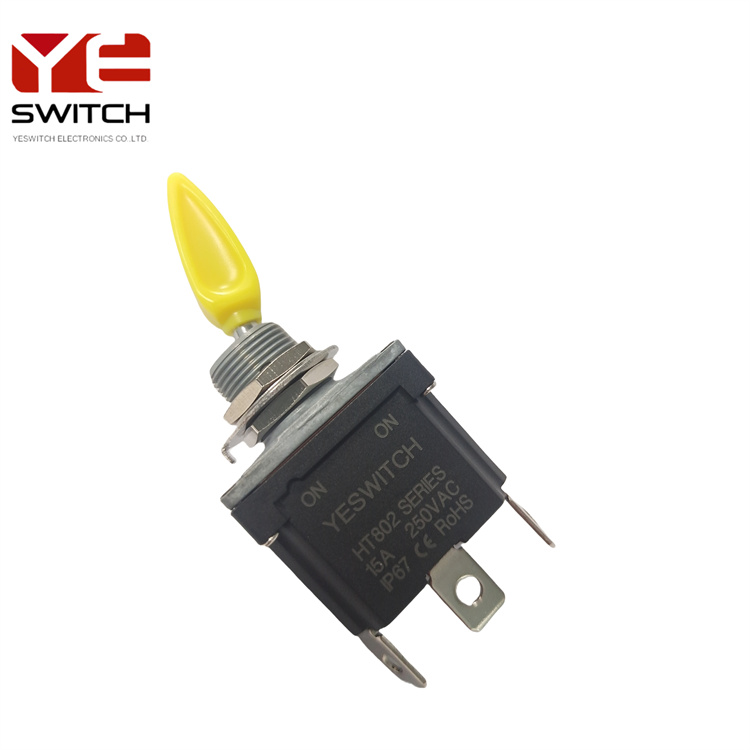

YESWITCH HT802 ON-ON Toggle Switch For Crane Truck   YESWITCH HT802 Series ON-ON toggle switch,which is superior military-grade construction well-suited for military, aerospace and other demanding conditions where reliability is essential. Features a bonded seal between the toggle lever and bushing, and between the cover and case. The toggle switches can be used where panels are subject to splashes, hose downs, or outdoor environments.Applications include environments where the switches are subjected to mechanical shock, vibration, and temperature extremes as well as environments with dust, splashing or directed water.The toggle switches meet the need for a rugged, cost-effective toggle switch.   SPECIFICATIONS: CONTACT RESISTANCE: 20m0(Max) INSULATION RESISTANCE: 100VDC-100MQ.(Min) DIELECTRIC STRENGTH: 1500VAC-1MINUTE MECHANICAL LIFE CYCLE: 100,000 CYCLES OPERATING TEMPERATURE: -40 ~+ 85 Degree FRONT SEAL: IP 68.   RATING: RESISTIVE LOAD: 15A 125/250VAC,15A 28VDC. INDU…
