Test tool B IEC61032 Figure 2 IEC60529 IP1 Standard Test Finger

11

Test tool B IEC61032 Figure 2 IEC60529 IP1 Standard Test Finger

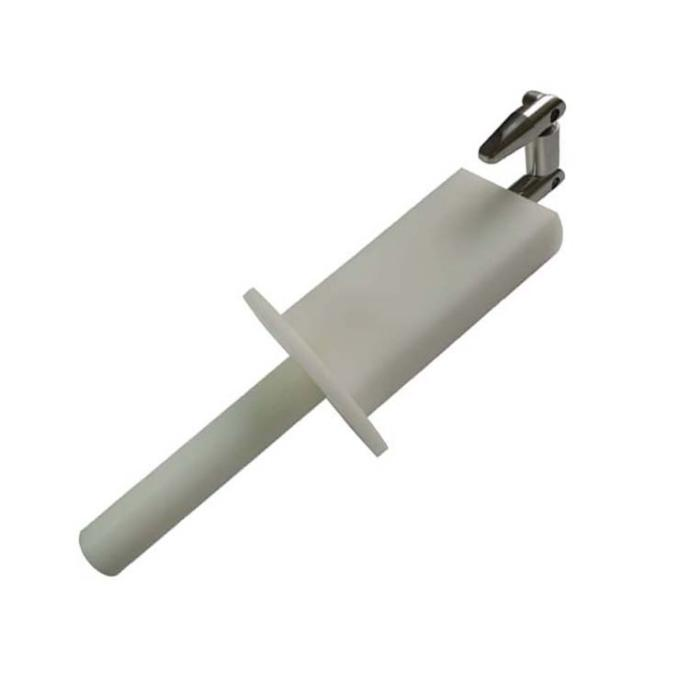

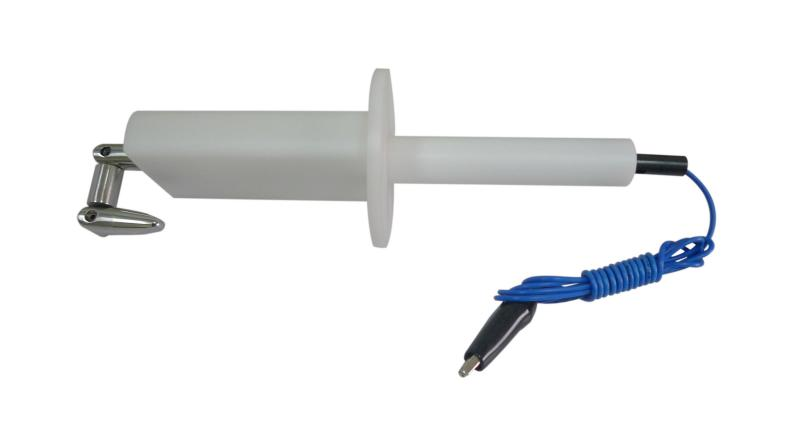

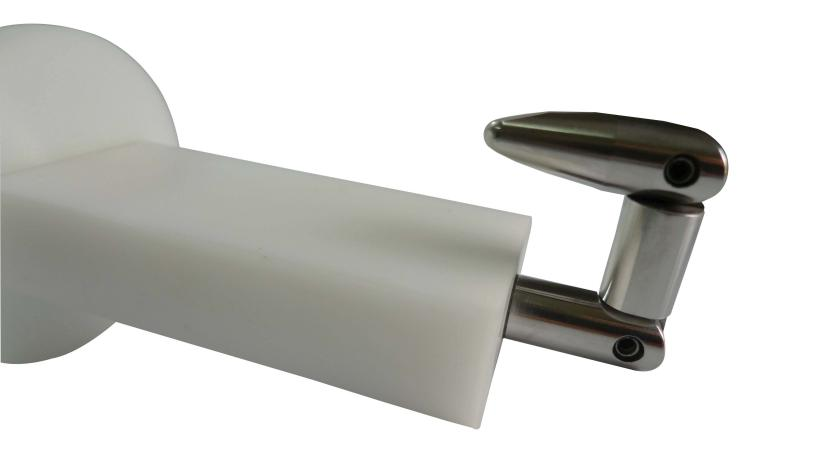

                                                 Test tool B (standard test finger) YW-I02  Complied standards: GB/T16482-2008 Figure 2, IEC61032 Figure 2, GB/T16842 and GB4208. 4706.1 IP2, IEC60529 IP1, IEC60065  Purpose: To test the basic protection against human contact with dangerous components, and also to test the protection against finger contact Sample range: easily accessible live parts or mechanical parts of the casing Structure and function: Simulates human fingers, consisting of the fingertip, middle finger, finger base, and insulated handle. There are two active joints that can bend within 90 degrees. Customizable: The end of the handle is equipped with a pluggable banana plug and wiring terminal for anti electric shock testing, or an M6 thread…
