Instrument rotary testing machine

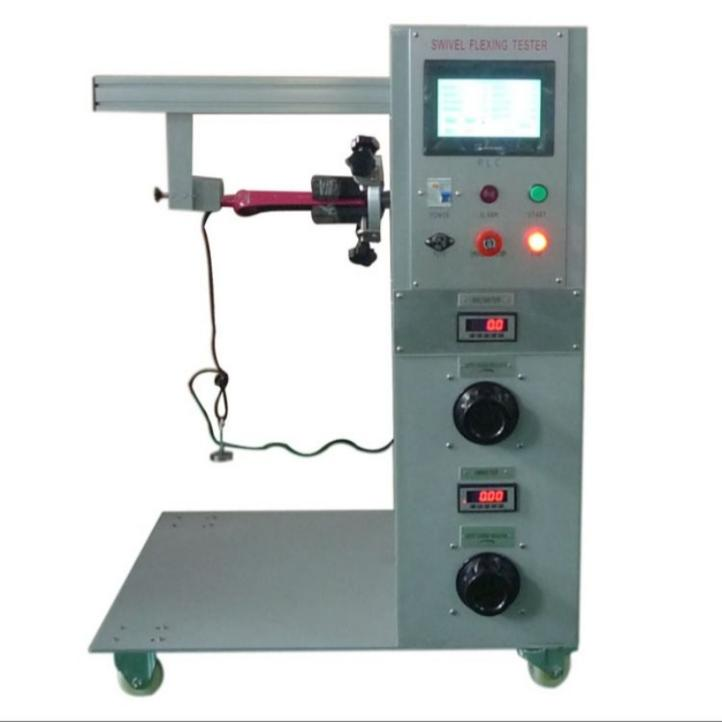

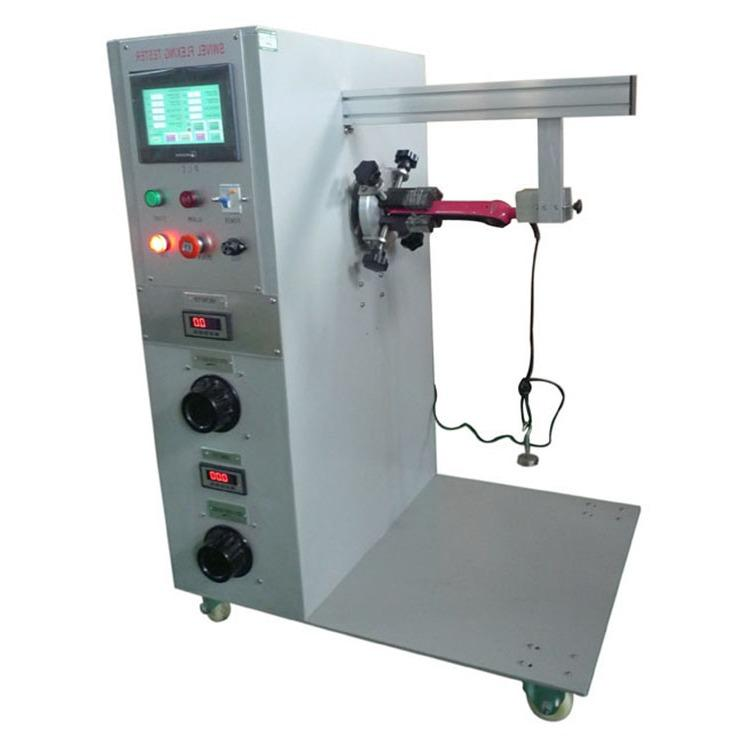

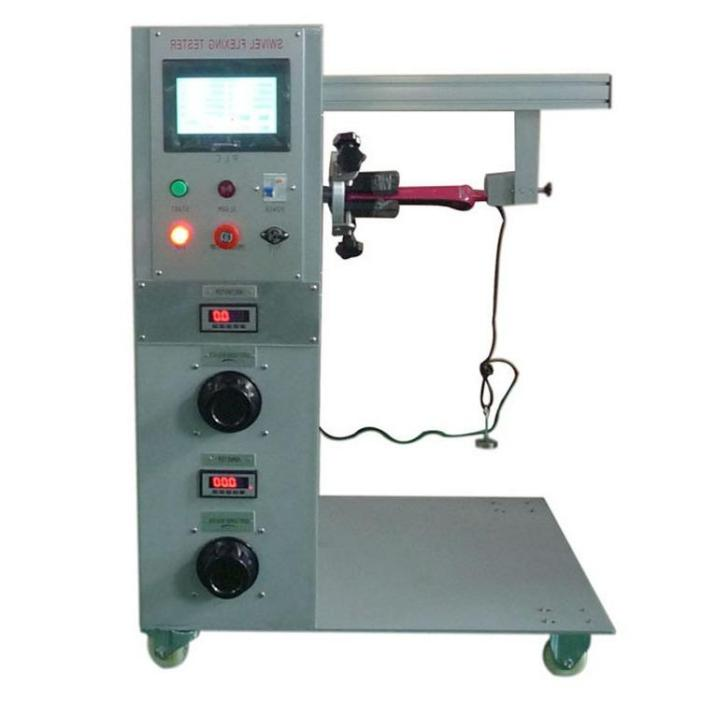

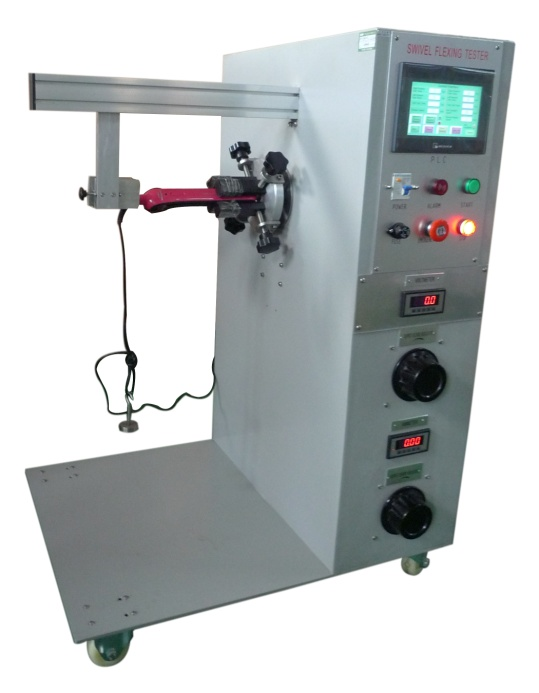

air curler life testing machine YW-1173 Complied standards: GB4706.15 (IEC60335-2-23) Special Requirements for Skin and Hair Care Appliances, 11.101  Purpose: Used for testing the mechanical life and temperature rise of instruments equipped with rotating connections Sample scope: Instruments equipped with rotating connections, such as curlers and perms Structure and function: Adopting a floor standing structure. Controlled by PLC, operated by touch screen, with preset test frequency and rate, and built-in load. The rotary table rotates forward for 20 cycles at a rate of 50r/min and then reverses for 20 cycles, automatically stopping when the test frequency is reached. Technical parameters: 1. Control: Mitsubishi PLC electrical control, 7-inch LCD color touch screen operation  2. Test speed: 50r/min  3. Test frequency: 0-999999 times can be preset, standard default is 1500 times  4.&nbs…
