Conventional Metal Bench Lathe

72

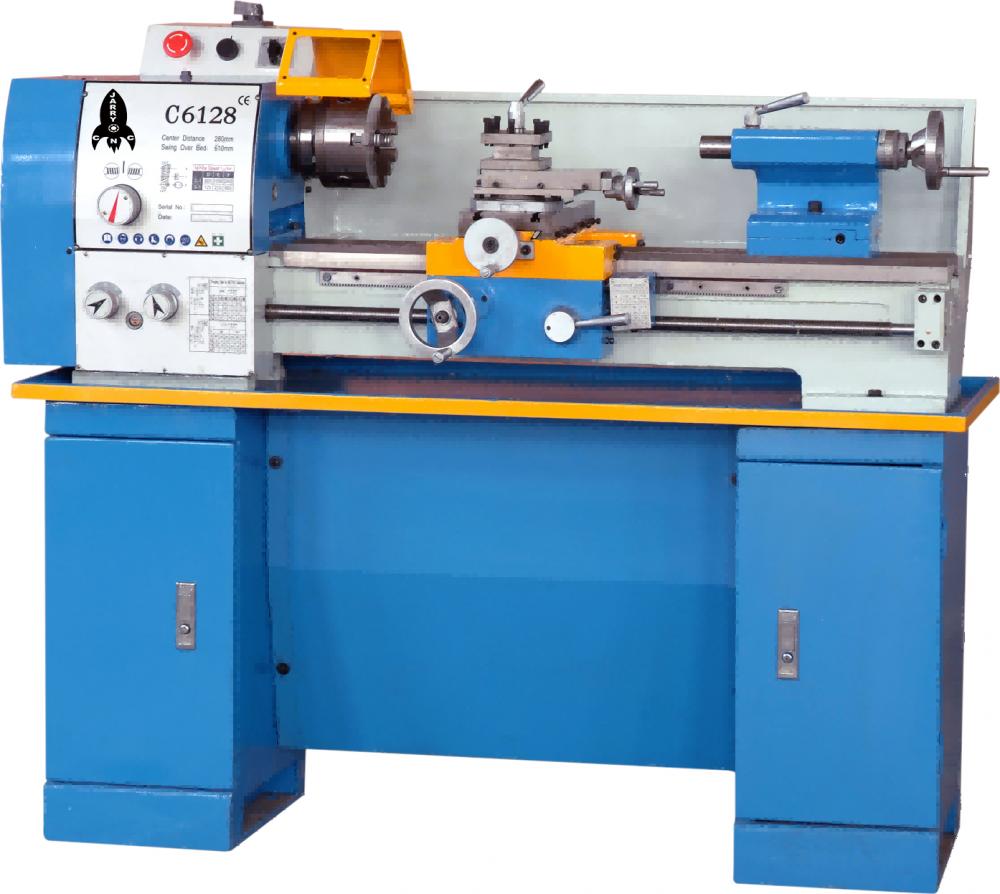

Conventional Metal Bench Lathe

Feature: Precision ground and supersonic frequency hardened bed ways.It features with high accuracy and well-resisting. ·The spindle is supported with precision roller bearing. ·Safety magnetic switch or lock key switch . The width of bed ways is up to 180mm,providing superbrigidity. Specification: Item  Model CQ6128x610 CQ6128Vx610 1 Max. swing over bed Φ280mm 2 Max. swing over cross slide Φ150mm 3 Distance between centers 610mm 4 Width of bed 180mm 5 Spindle bore Φ26mm 6 Taper of spindle bore M.T.#4 7 Range of spindle speeds 125-2000rp…
