CDC-F20 series integrated multi-way directional valves

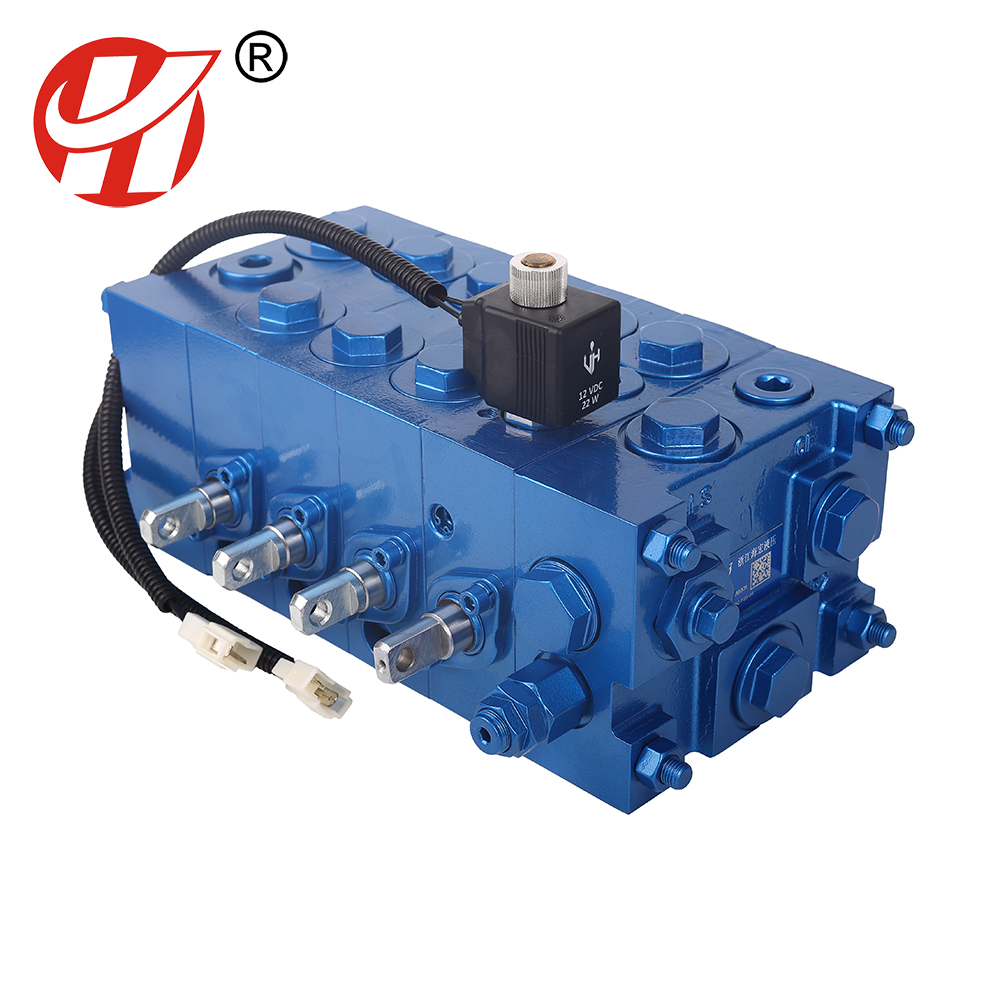

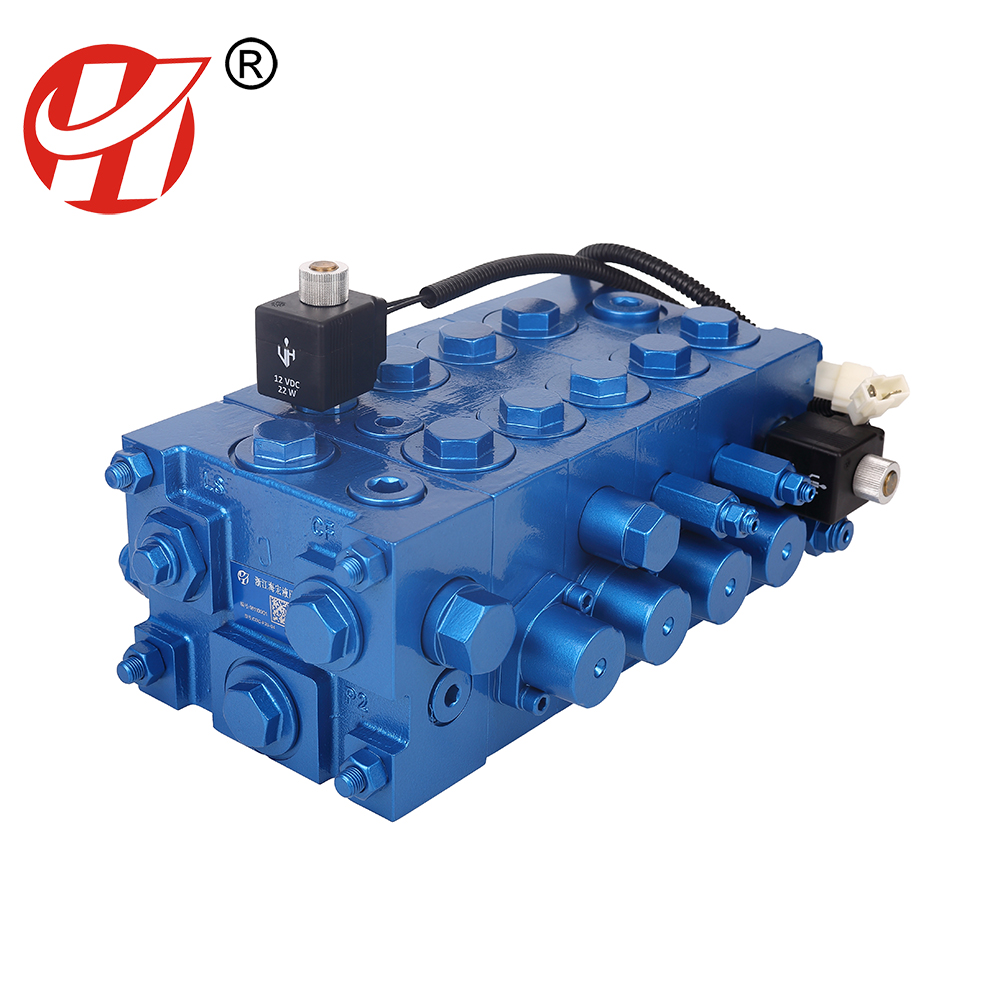

CDC-F20 Series Integrated multi-way directional valves CDC-F20 series integrated multi-way directional valves provides a combined lifting load sensitive multi-way valve. The valve is matched with a double pump structure. The operation and unloading of one of the pumps are controlled through the internal feedback oil passage to control the unloading one-way valve. When the lifting action is required, the feedback oil closes the unloading one-way valve, and the two pumps merge to lift; When tilting or accessory work is required, the feedback oil opens the unloading check valve and one of the pumps unloads, which can effectively improve the efficiency and reduce the temperature of the whole vehicle. In addition, the valve adopts a load sensitive design, which can match the output flow with the stroke change of the valve stem, and greatly improve the control performance. Technical parameter Maximum flow: 120L/min Rated pressure: 250bar…
