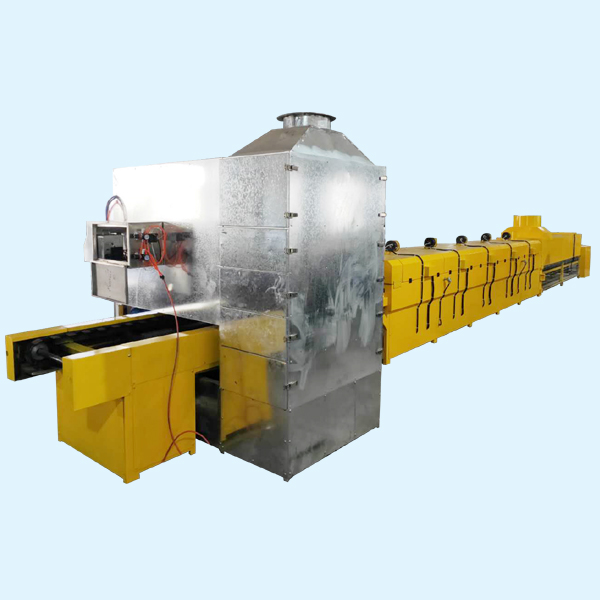

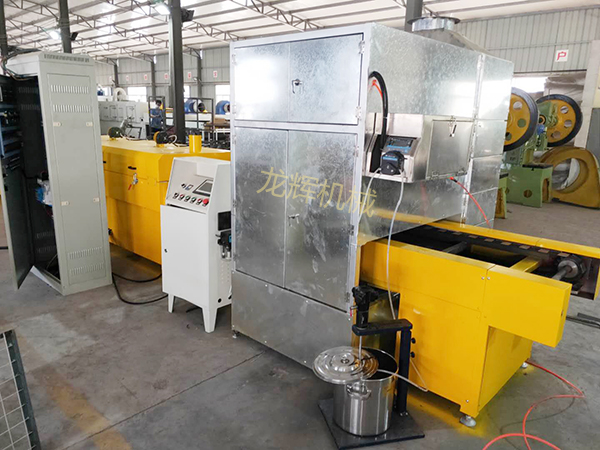

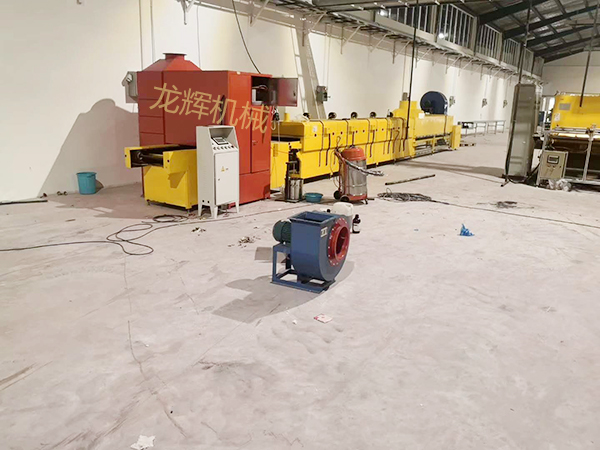

Brake pad steel backing spray line

115

Brake pad steel backing spray line

t is used for automatically spraying liquid coating on the surface or around the flat parts according to the quantity, automatically entering the drying and cooling machine equipment     Equipment name: Glue spraying machine   Equipment composition: spray room + conveyor + infrared drying passage + cooling section   Equipment size: LxWxH, 1300 x2100x2300, 2600 x920x810, 7300 x910x1300, 5000 x930x1800   Capacity: ".  The size of large disk is calculated by 300*120mm, which can place 16.6 pieces per minute and produce 996pcs/h large disk per hour   "   A Operating Parameters   ■ Working width: 600mm   ■ Transmission speed: 0-3m/min (frequency conversion adjustment)   ■ Coating thickness: 10-150um(digital display adjustable)   ■ Spray gun operation: CNC adjustable (servo motor)   ■ Temperature adjustment: 0-200℃
